Subaru Outback: DTC 71, 72, 75, 76, 7A, 7B, 7D, 7E, 91, 92, 95, 96, 9A, 9B, 9D, 9E, A1, A2, A3, A4, A5, AA, AB, AC, AD, BB

Subaru Outback (BR) 2010-2015 Service Manual / Body / Airbag System (Diagnostics) / Diagnostic Chart with Trouble Code / DTC 71, 72, 75, 76, 7A, 7B, 7D, 7E, 91, 92, 95, 96, 9A, 9B, 9D, 9E, A1, A2, A3, A4, A5, AA, AB, AC, AD, BB

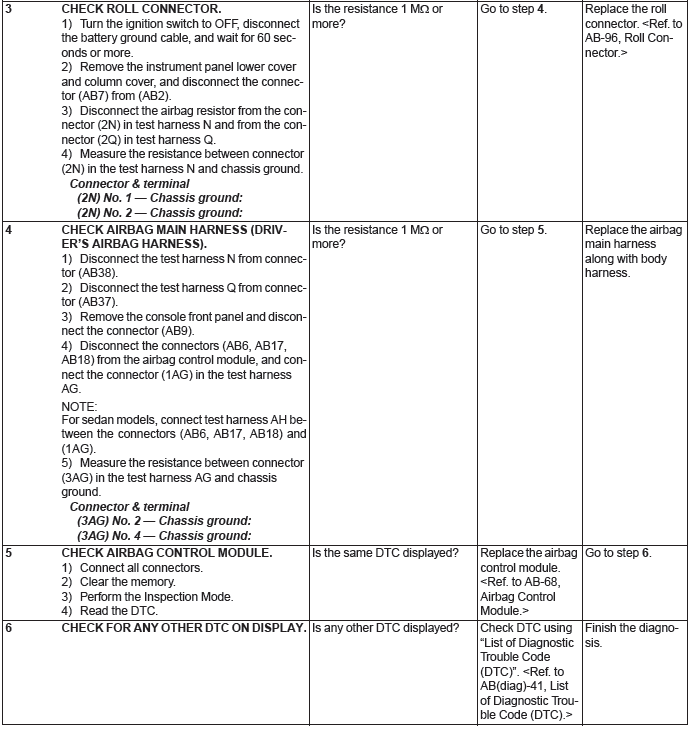

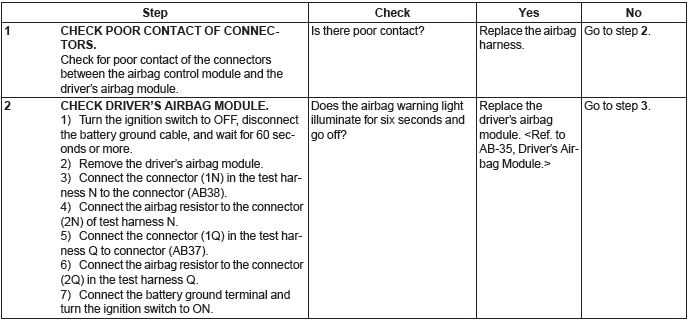

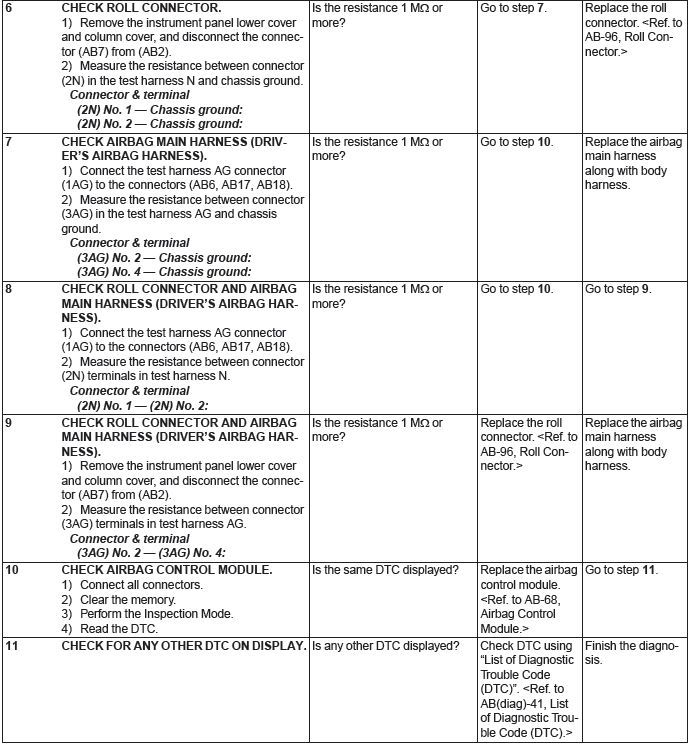

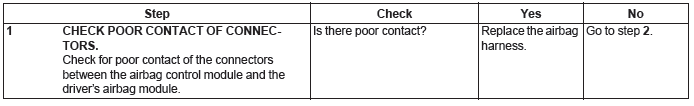

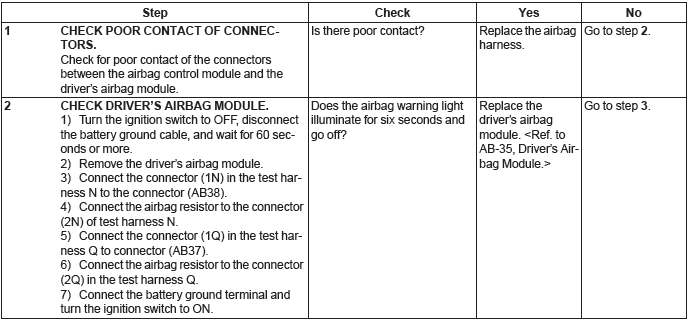

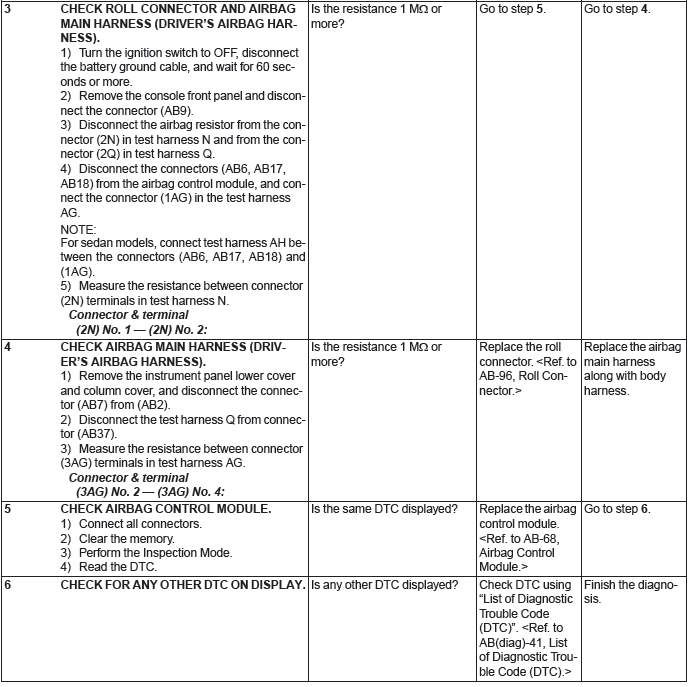

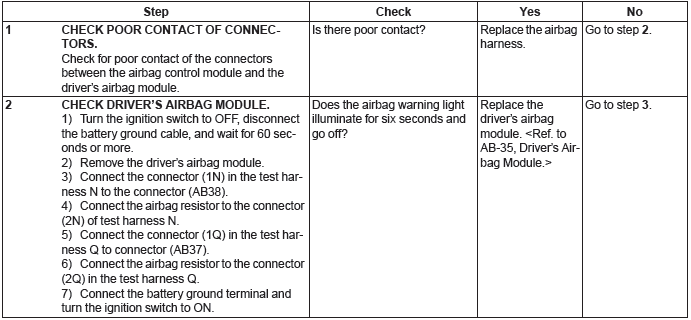

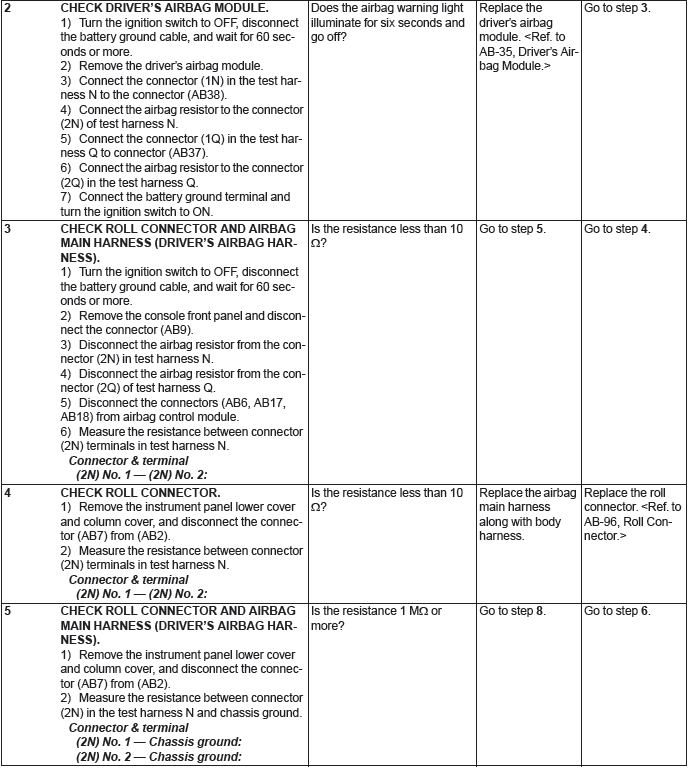

AV:DTC 71 DRIVER'S AIRBAG FAILURE

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

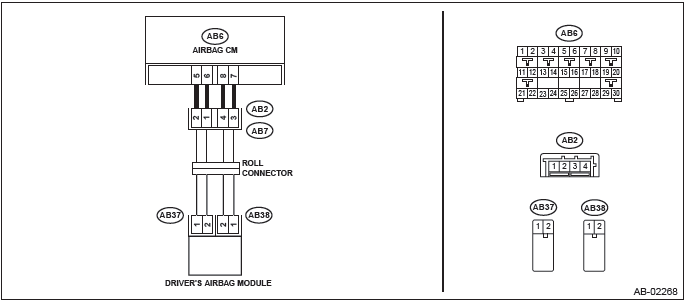

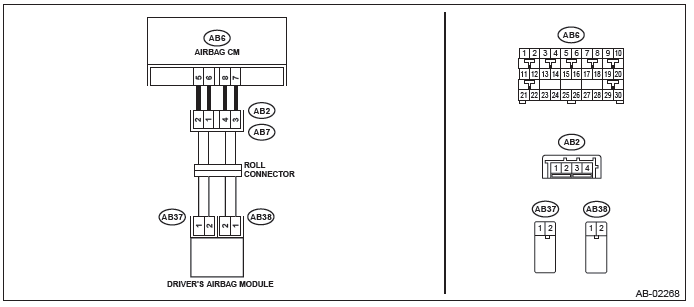

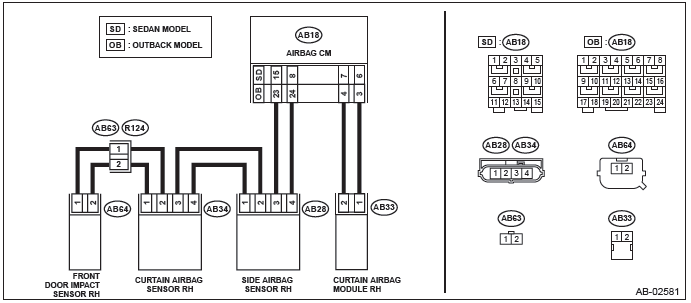

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

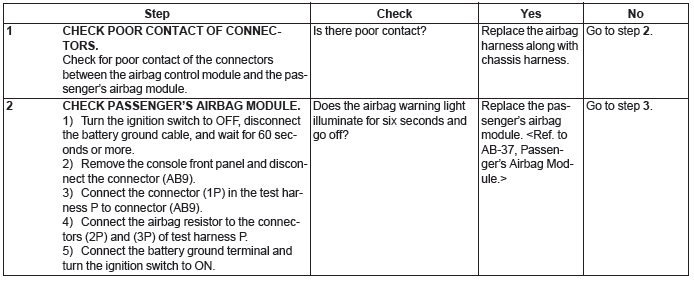

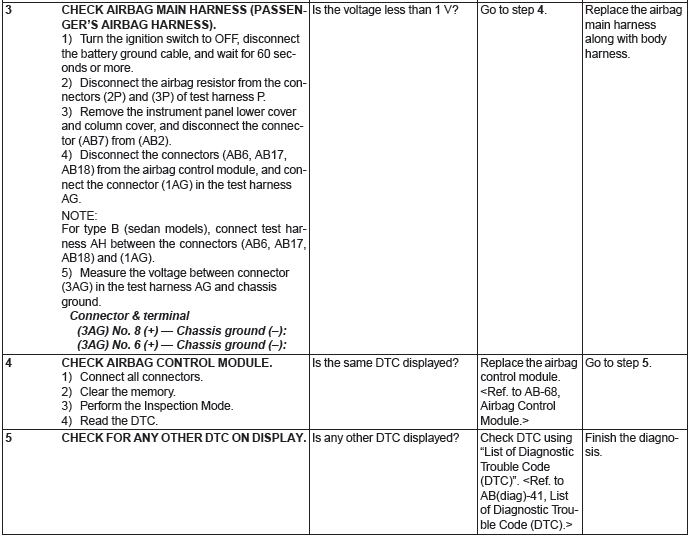

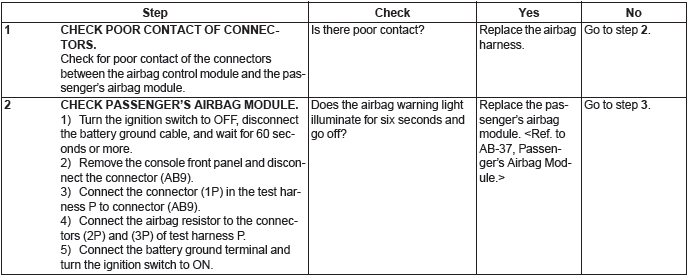

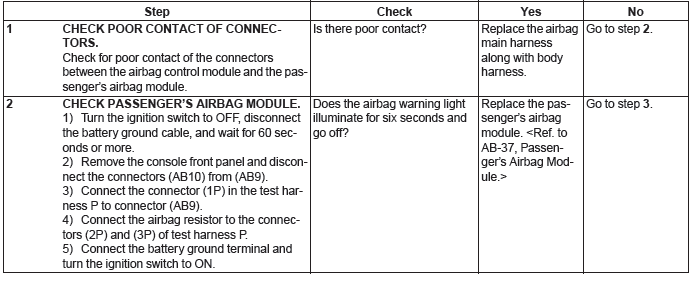

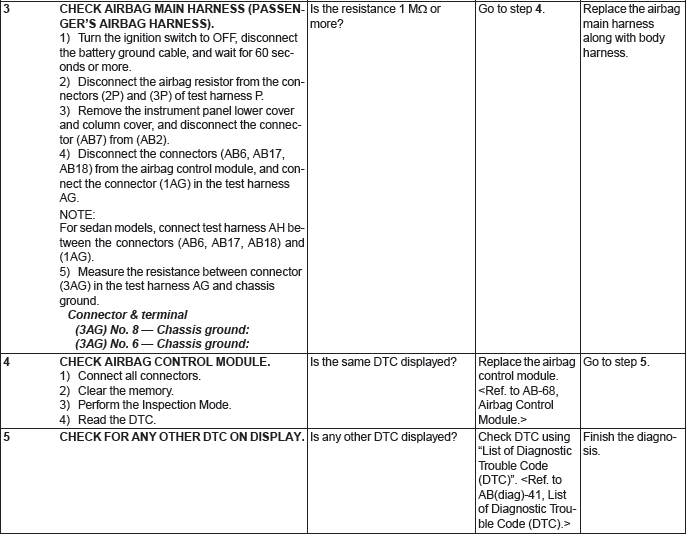

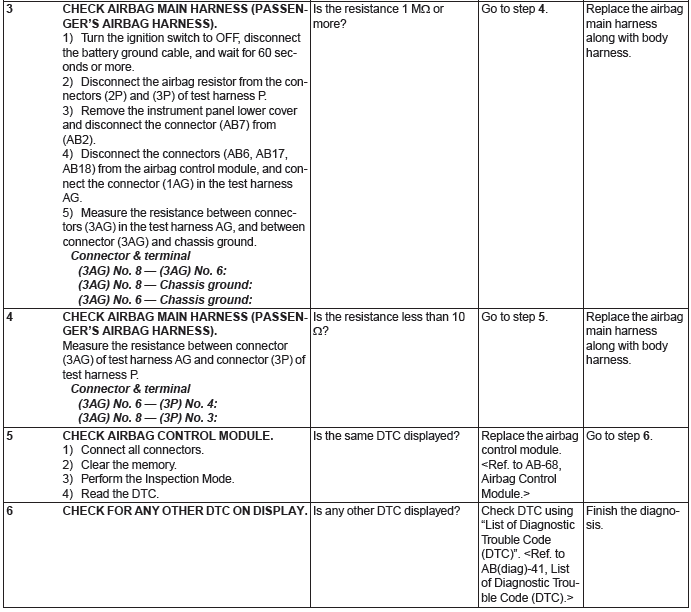

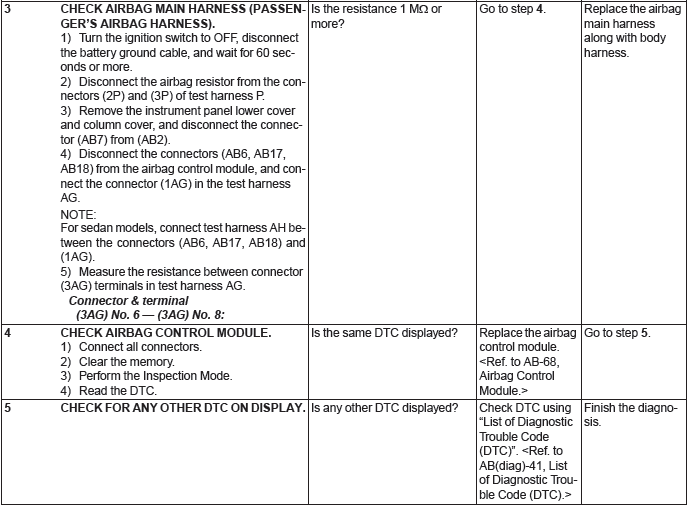

AW:DTC 72 PASSENGER'S AIRBAG FAILURE

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

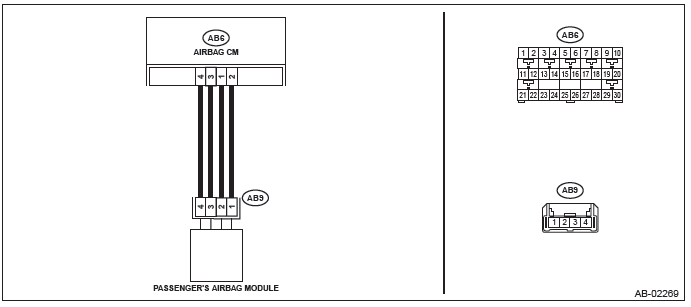

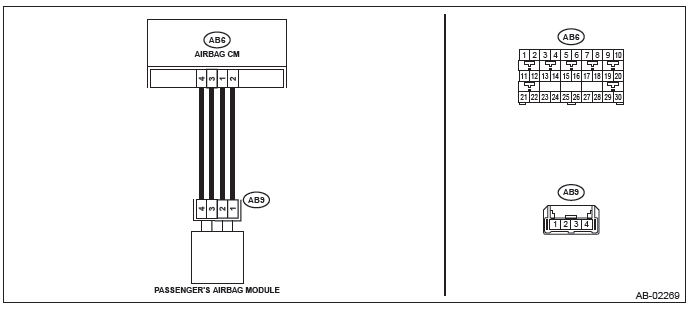

WIRING DIAGRAM:

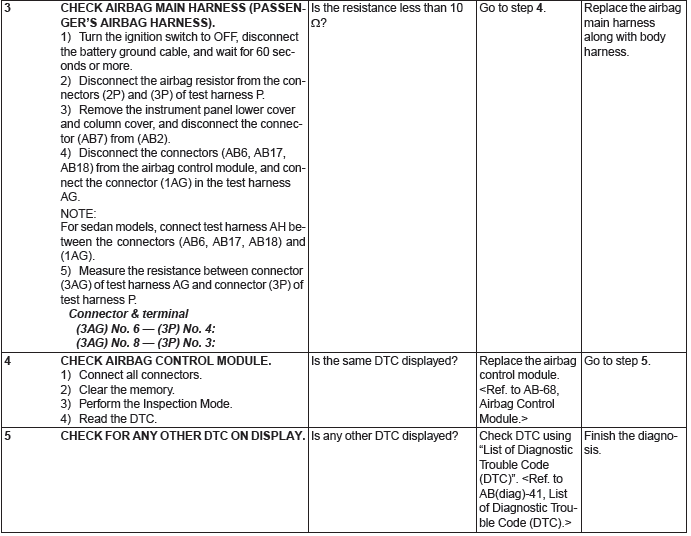

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

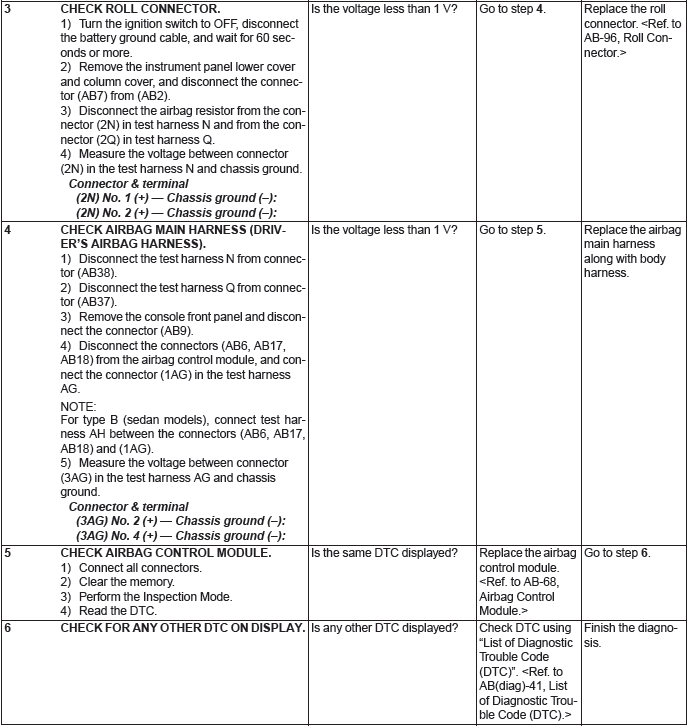

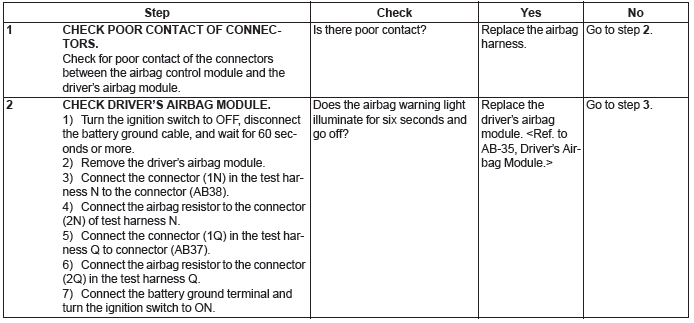

AX:DTC 75 DRIVER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

AY:DTC 76 PASSENGER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

AZ:DTC 7A DRIVER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

BA:DTC 7B PASSENGER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

BB:DTC 7D DRIVER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

BC:DTC 7E PASSENGER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

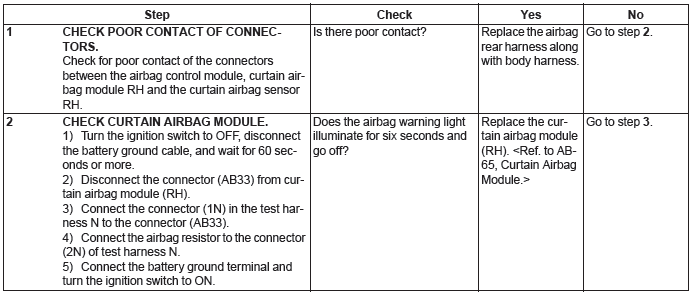

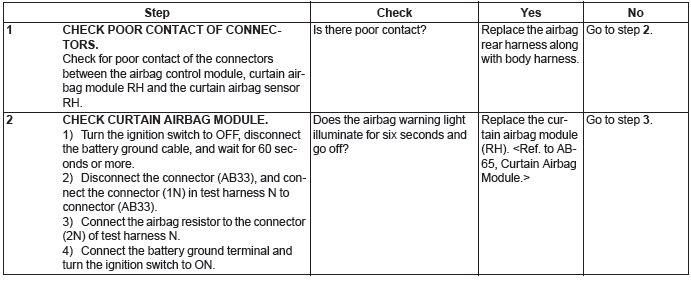

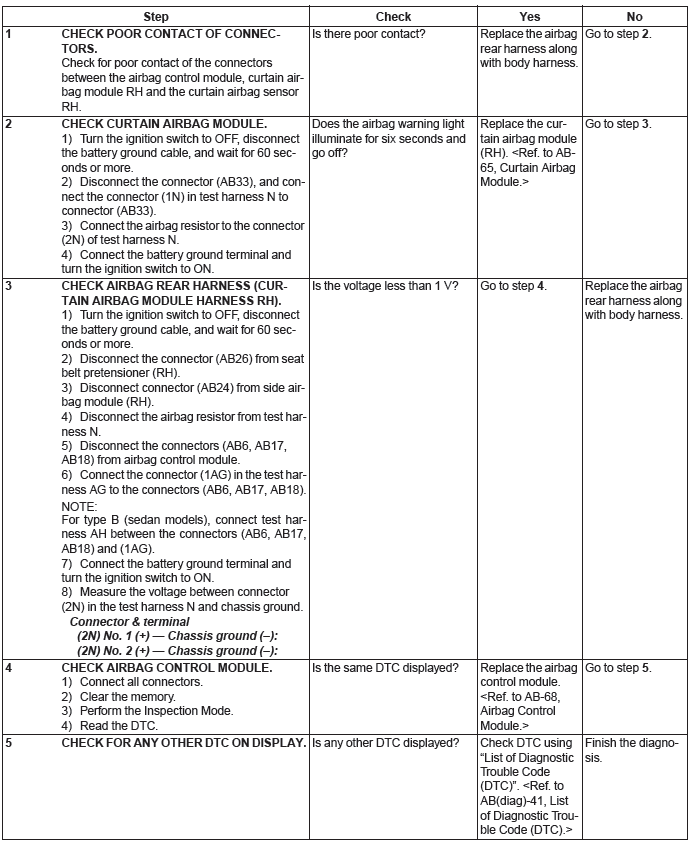

BD:DTC 91 CURTAIN AIRBAG MODULE RH FAILURE

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

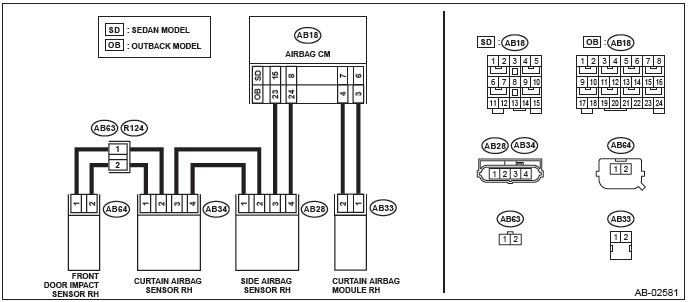

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

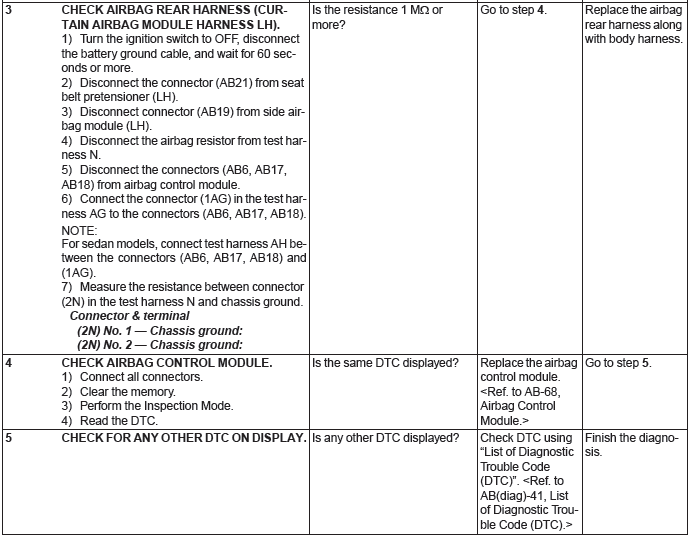

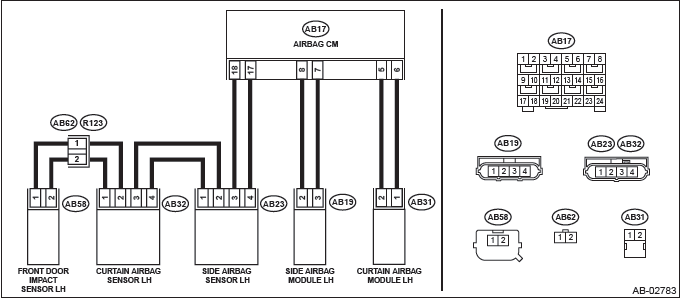

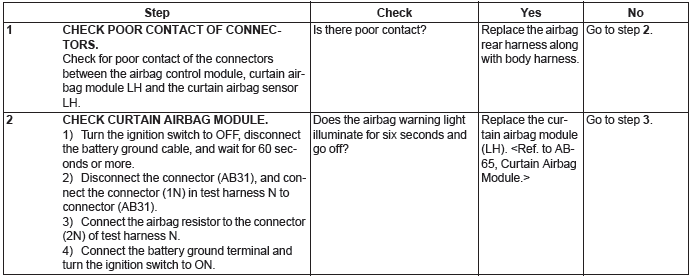

BE:DTC 92 CURTAIN AIRBAG MODULE LH FAILURE

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

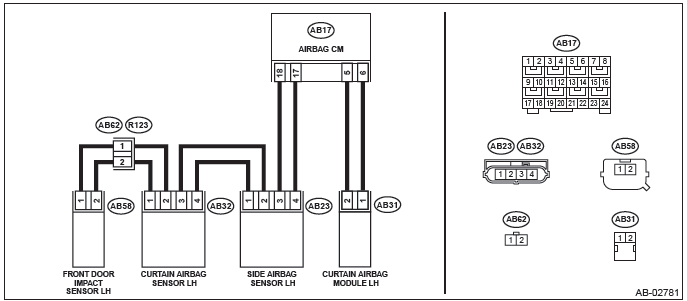

WIRING DIAGRAM:

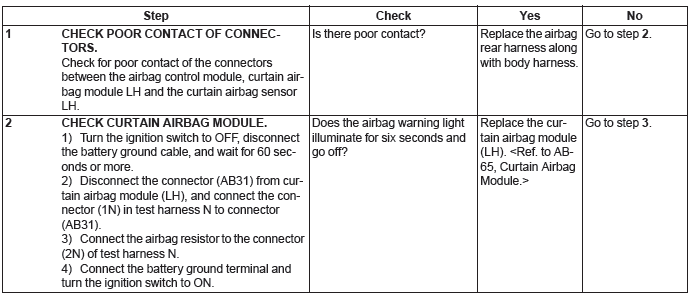

Subaru Outback. Airbag System (Diagnostics)

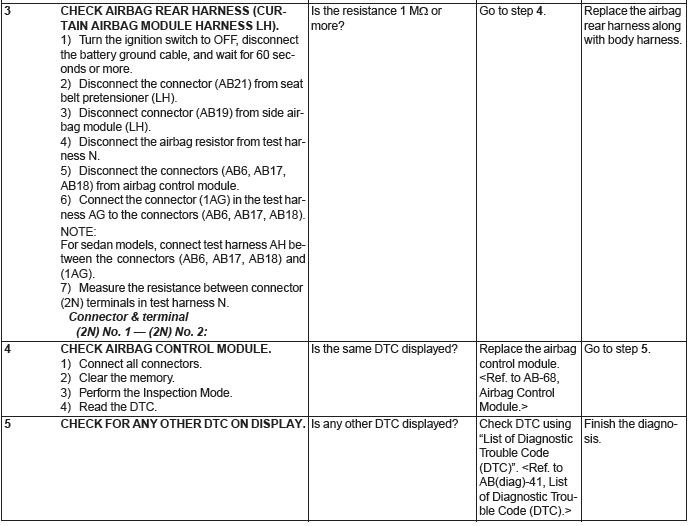

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

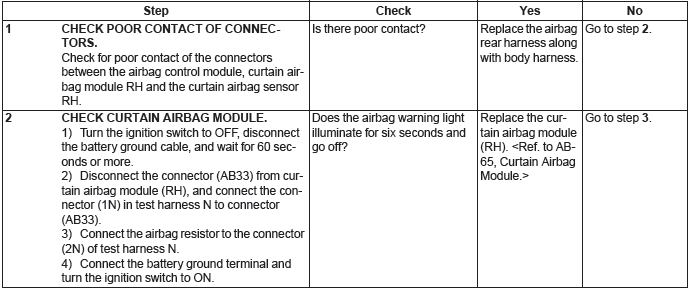

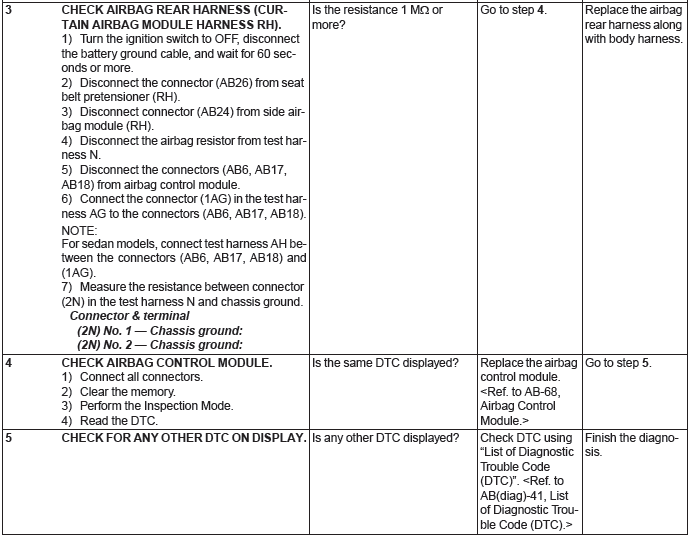

BF:DTC 95 CURTAIN AIRBAG MODULE RH FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

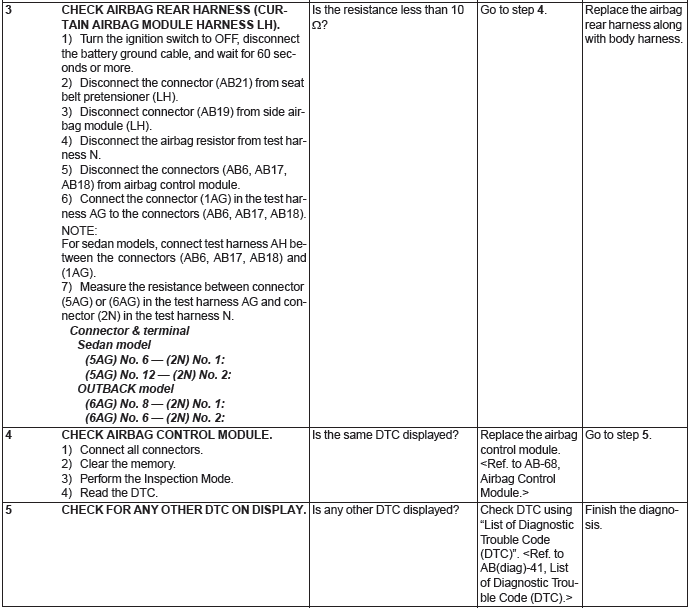

BG:DTC 96 CURTAIN AIRBAG MODULE LH FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

BH:DTC 9A CURTAIN AIRBAG MODULE RH FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

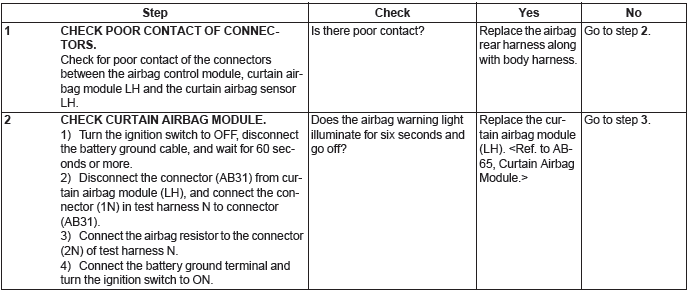

BI: DTC 9B CURTAIN AIRBAG MODULE LH FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

BJ:DTC 9D CURTAIN AIRBAG MODULE RH FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

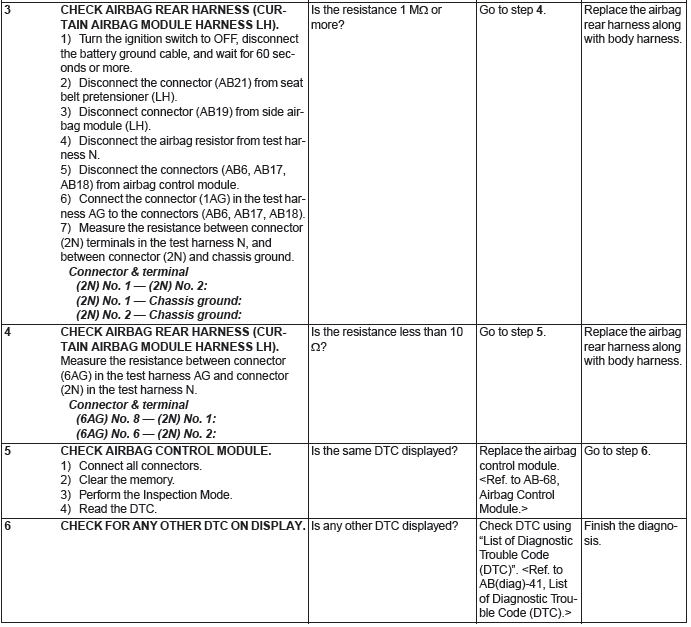

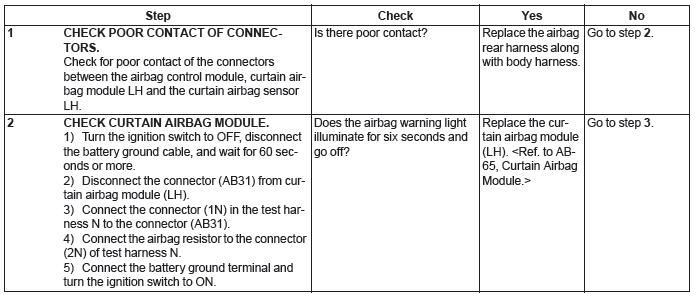

BK:DTC 9E CURTAIN AIRBAG MODULE LH FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

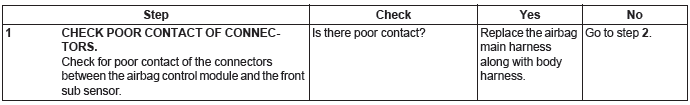

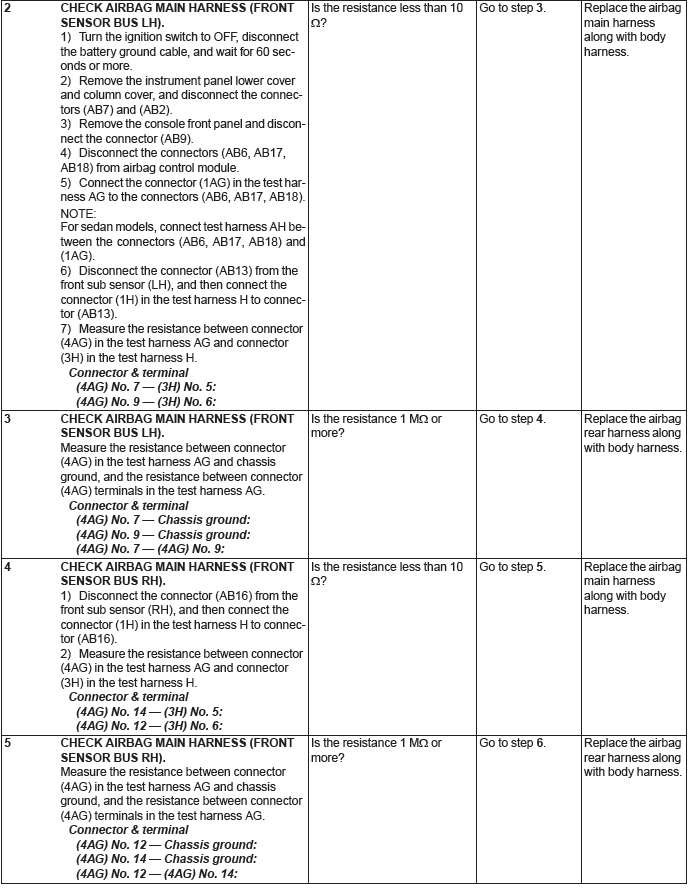

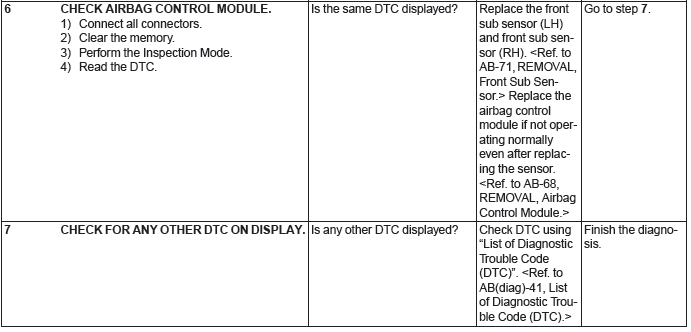

BL:DTC A1 FRONT SENSOR BUS COMMUNICATION ERROR

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

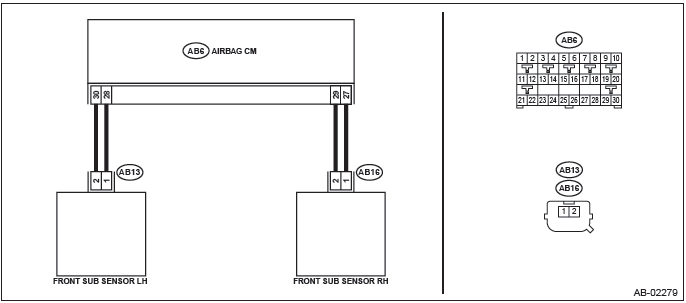

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

BM:DTC A2 DOOR SENSOR BUS RH COMMUNICATION ERROR

NOTE: Refer to DTC A3 for DTC A2. <Ref. to AB(diag)-167, DTC A3 DOOR SENSOR BUS RH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

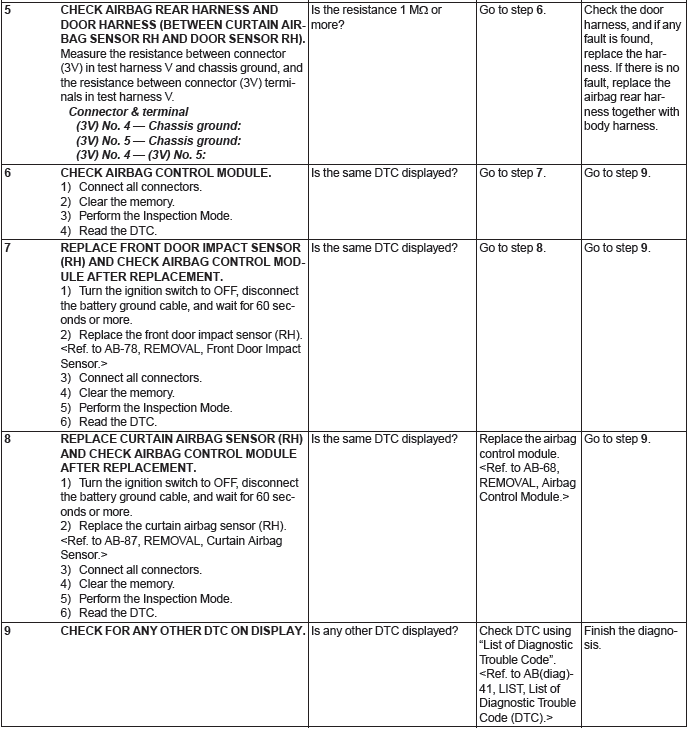

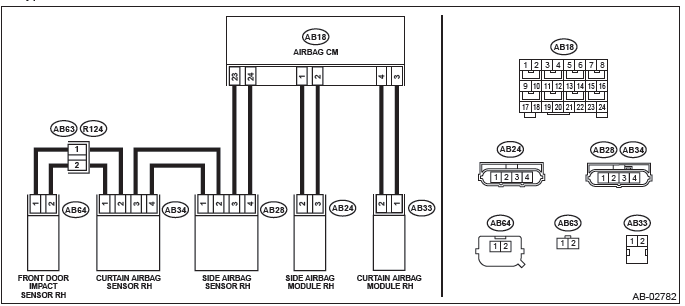

BN:DTC A3 DOOR SENSOR BUS RH COMMUNICATION ERROR

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

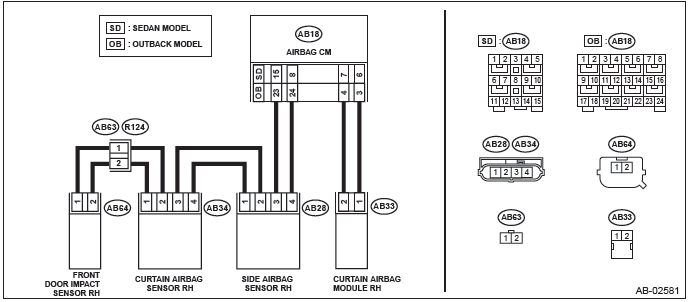

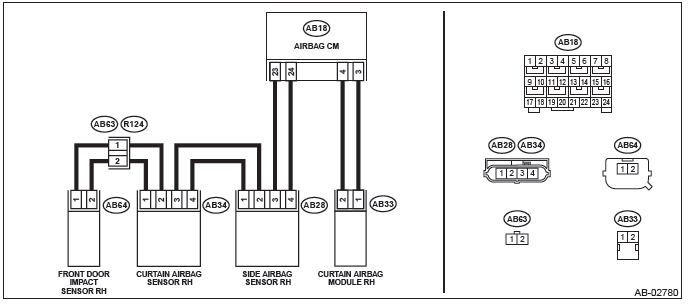

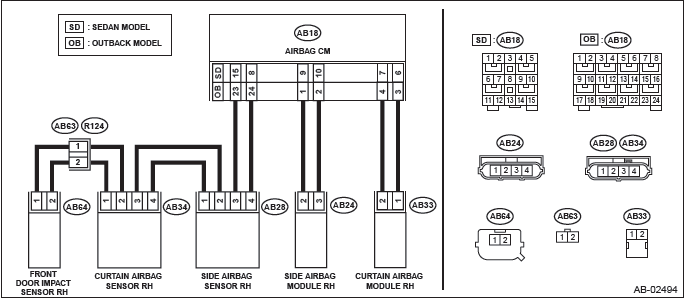

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

BO:DTC A4 DOOR SENSOR BUS LH COMMUNICATION ERROR

NOTE: Refer to DTC A5 for DTC A4. <Ref. to AB(diag)-170, DTC A5 DOOR SENSOR BUS LH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

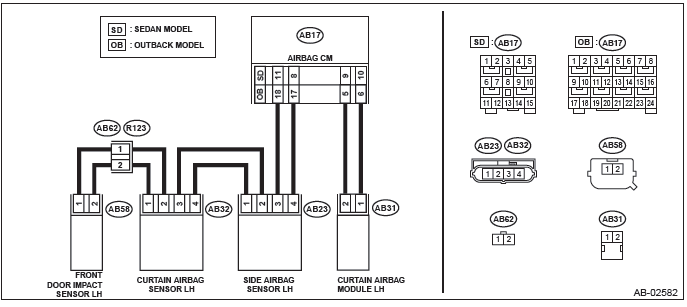

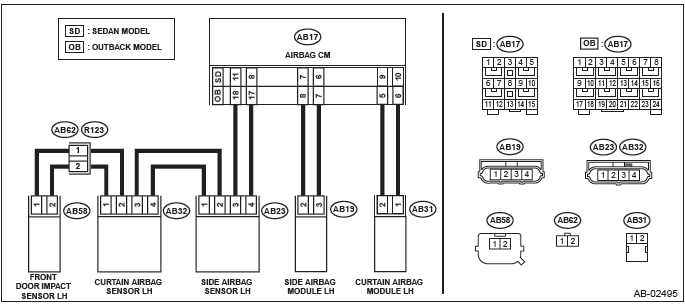

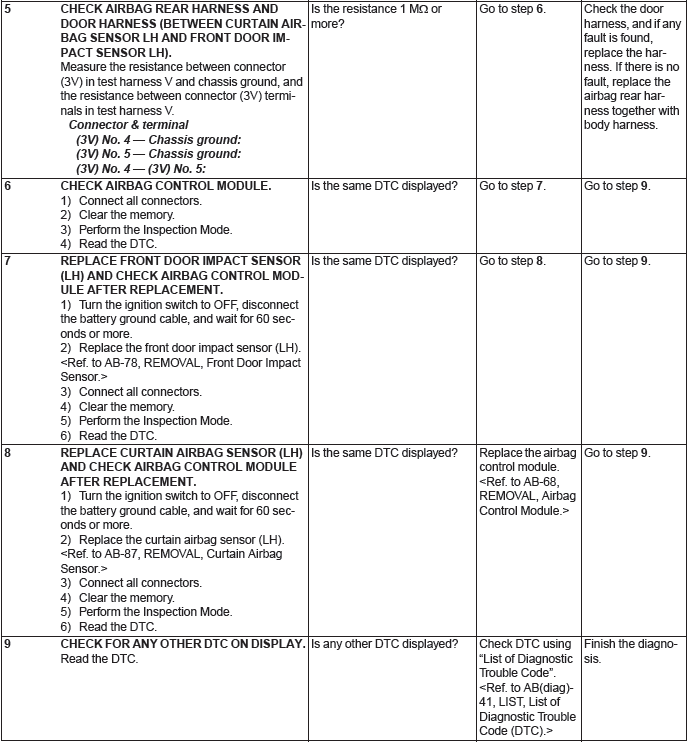

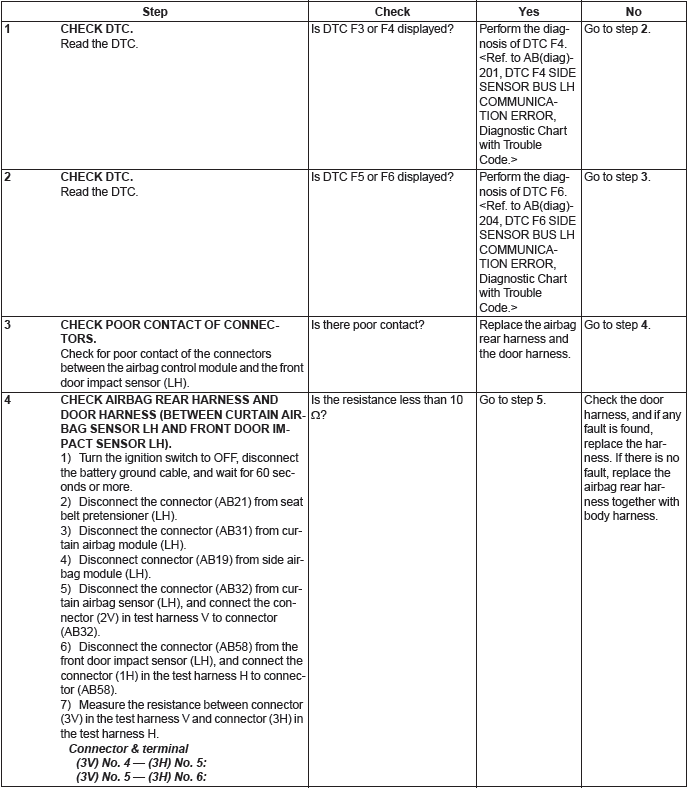

BP:DTC A5 DOOR SENSOR BUS LH COMMUNICATION ERROR

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

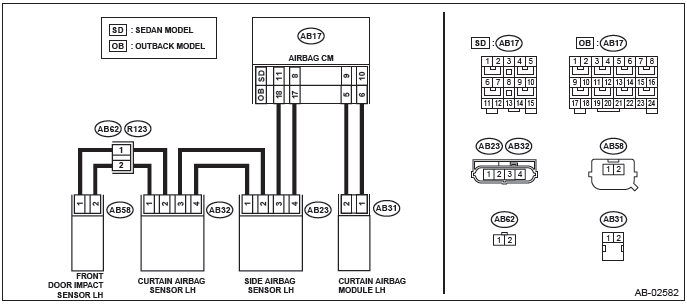

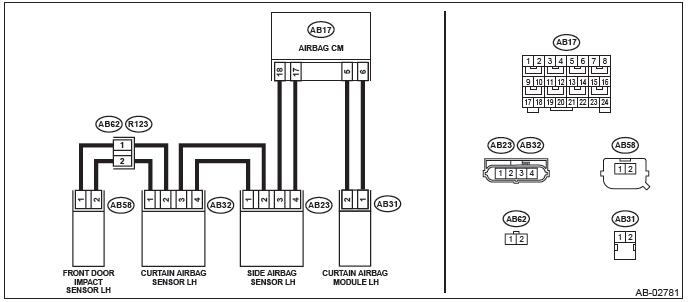

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

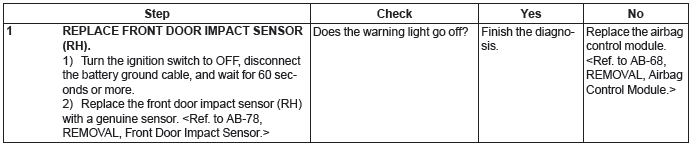

BQ:DTC AA DOOR SENSOR RH FAILURE

DTC DETECTING CONDITION:

Front door impact sensor (RH) is faulty.

If DTC AA is displayed, the circuit within the front door impact sensor (RH) is faulty.

Replace the front door impact sensor (RH). <Ref. to AB-78, REMOVAL, Front Door Impact Sensor.>

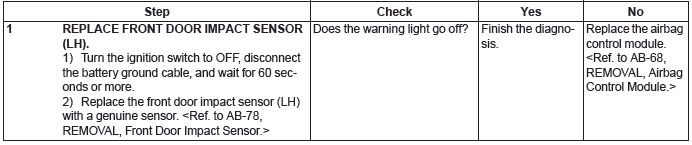

BR:DTC AB DOOR SENSOR LH FAILURE

DTC DETECTING CONDITION:

Front door impact sensor (LH) is faulty.

If DTC AB is displayed, the circuit within the front door impact sensor (LH) is faulty.

Replace the front door impact sensor (LH). <Ref. to AB-78, REMOVAL, Front Door Impact Sensor.>

BS:DTC AC DOOR SENSOR RH FALSE INSTALLATION

DTC DETECTING CONDITION:

Subaru Outback. Airbag System (Diagnostics)

BT:DTC AD DOOR SENSOR LH FALSE INSTALLATION

DTC DETECTING CONDITION:

Subaru Outback. Airbag System (Diagnostics)

BU:DTC BB ROLL OVER: FIRING OUTPUT

This DTC is indicated when the curtain airbag module and the seat belt pretensioner are deployed.

Once this DTC is displayed, the memory cannot be cleared. Replace the following parts.
