Subaru Outback (BR): DTC E2, E3, E4, E6, E7, E8, E9, EA, EB, EC, ED, EE, F1, F2, F3, F4, F5, F6

Subaru Outback (BR) 2010-2015 Service Manual / Body / Airbag System (Diagnostics) / Diagnostic Chart with Trouble Code / DTC E2, E3, E4, E6, E7, E8, E9, EA, EB, EC, ED, EE, F1, F2, F3, F4, F5, F6

BV:DTC E2 FRONT SENSOR BUS RH COMMUNICATION ERROR

NOTE: Refer to DTC E4 for details on DTC E2. <Ref. to AB(diag)-175, DTC E4 FRONT SENSOR BUS RH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

BW:DTC E3 FRONT SENSOR BUS RH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

NOTE: Refer to DTC E4 for details on DTC E3. <Ref. to AB(diag)-175, DTC E4 FRONT SENSOR BUS RH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

NOTE: Refer to DTC A1 for DTC E3. <Ref. to AB(diag)-164, DTC A1 FRONT SENSOR BUS COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

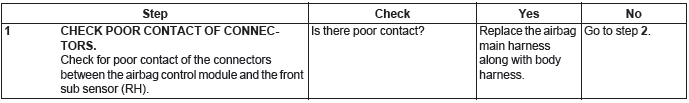

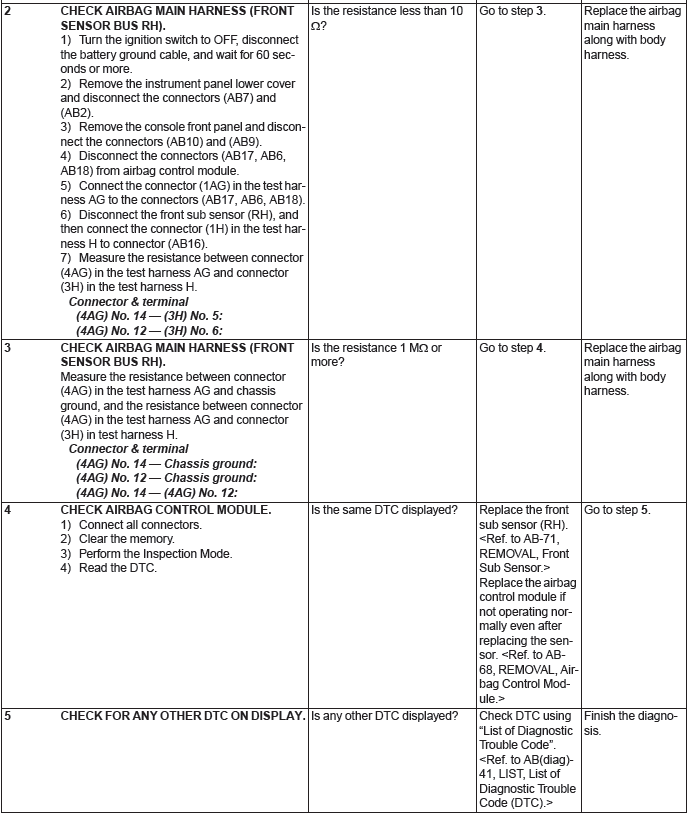

BX:DTC E4 FRONT SENSOR BUS RH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

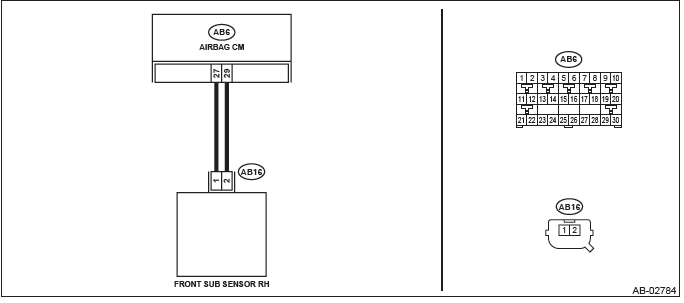

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

NOTE: Refer to DTC A1 for DTC E4. <Ref. to AB(diag)-164, DTC A1 FRONT SENSOR BUS COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

BY:DTC E6 FRONT SENSOR BUS LH COMMUNICATION ERROR

NOTE: Refer to DTC E8 for details on DTC E6. <Ref. to AB(diag)-181, DTC E8 FRONT SENSOR BUS LH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

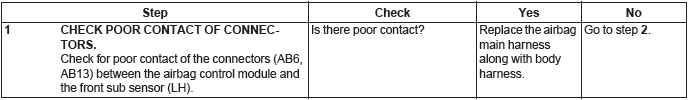

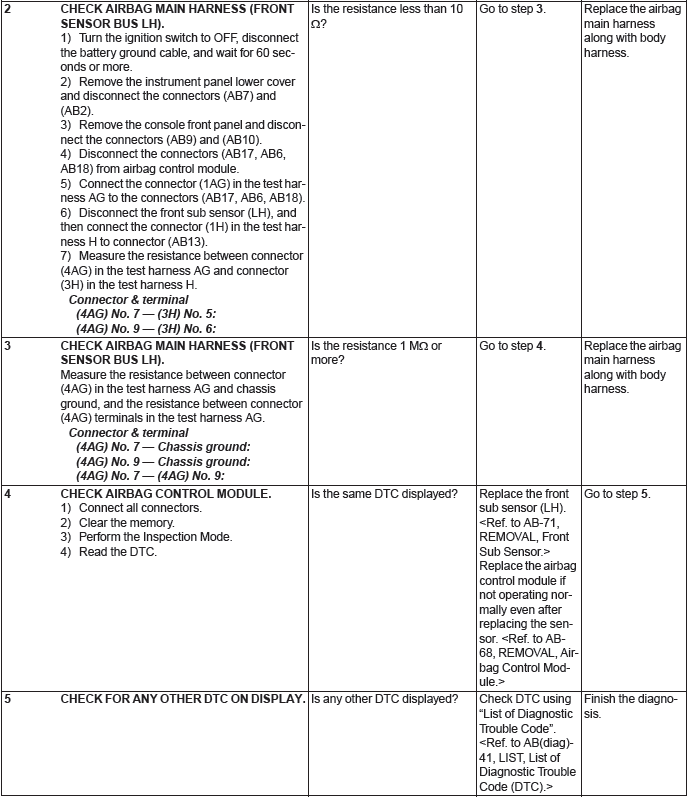

BZ:DTC E7 FRONT SENSOR BUS LH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

NOTE: Refer to DTC E8 for details on DTC E7. <Ref. to AB(diag)-181, DTC E8 FRONT SENSOR BUS LH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

2. TYPE B

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

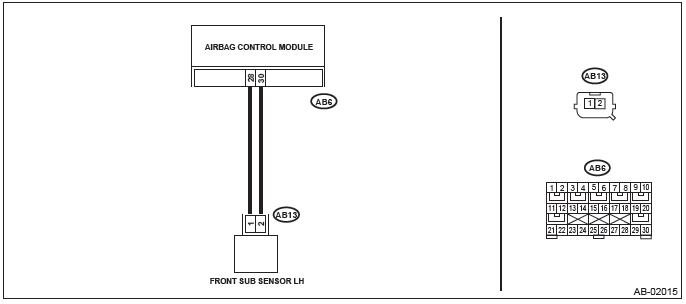

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

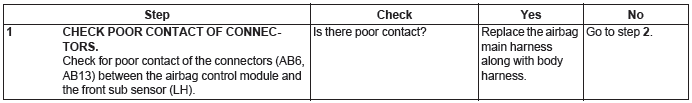

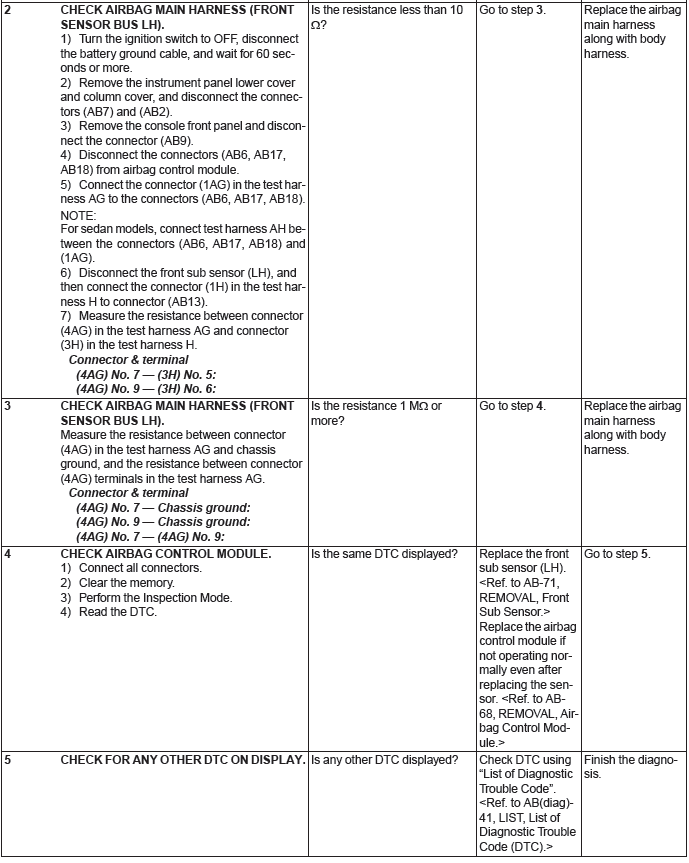

CA:DTC E8 FRONT SENSOR BUS LH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

NOTE: Refer to DTC E7 for DTC E8. <Ref. to AB(diag)-178, DTC E7 FRONT SENSOR BUS LH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

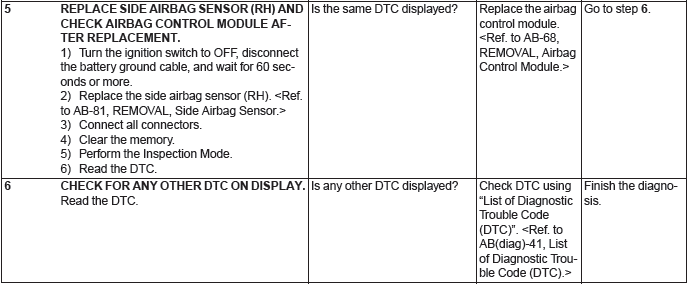

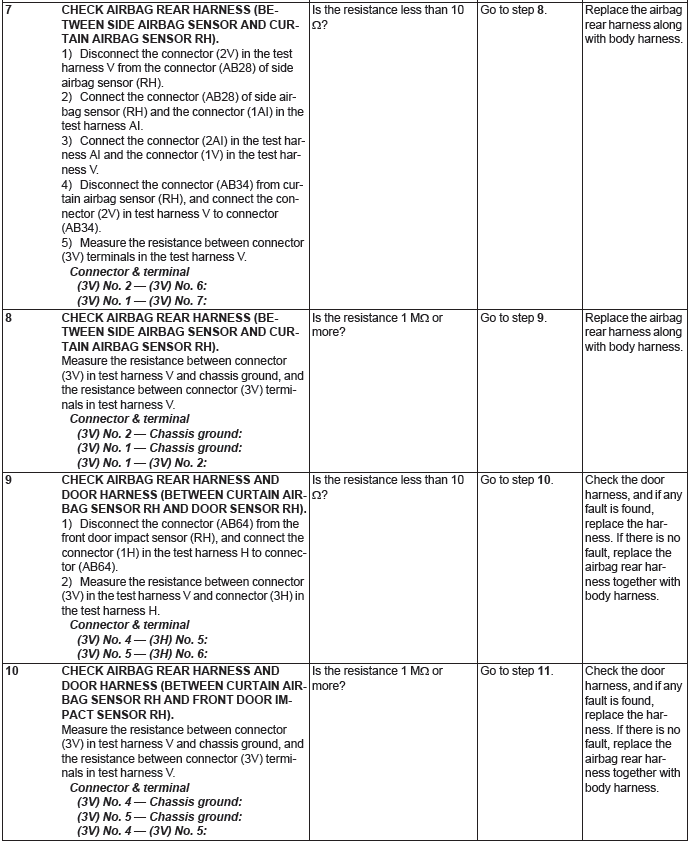

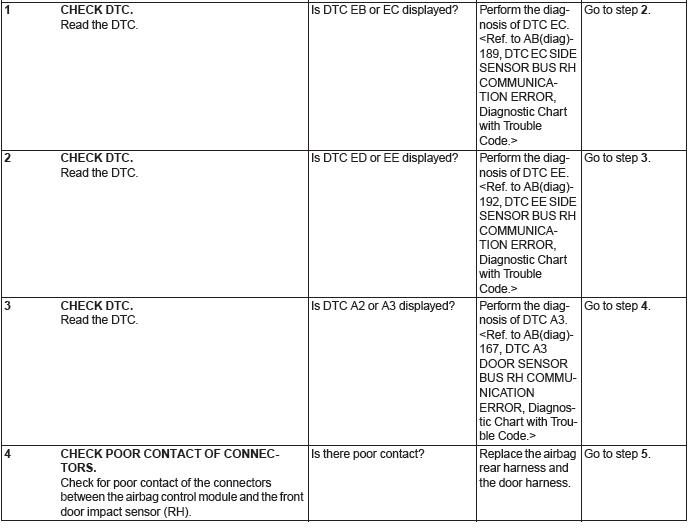

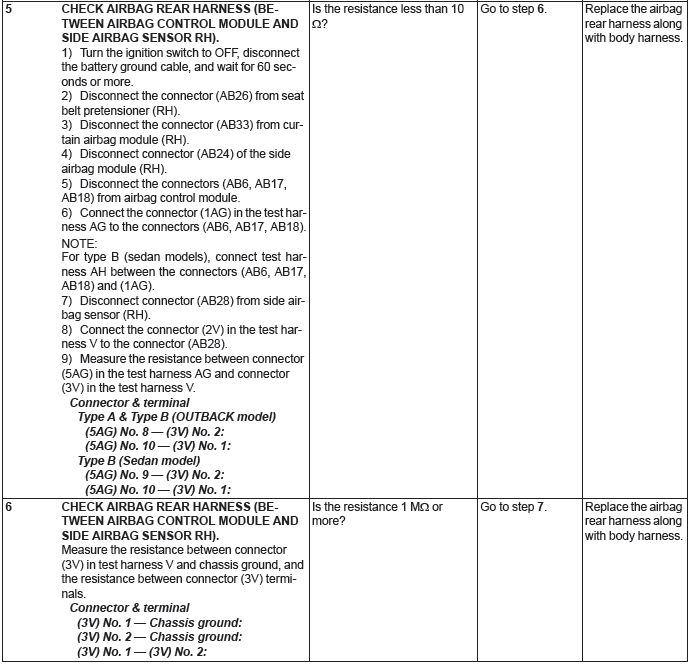

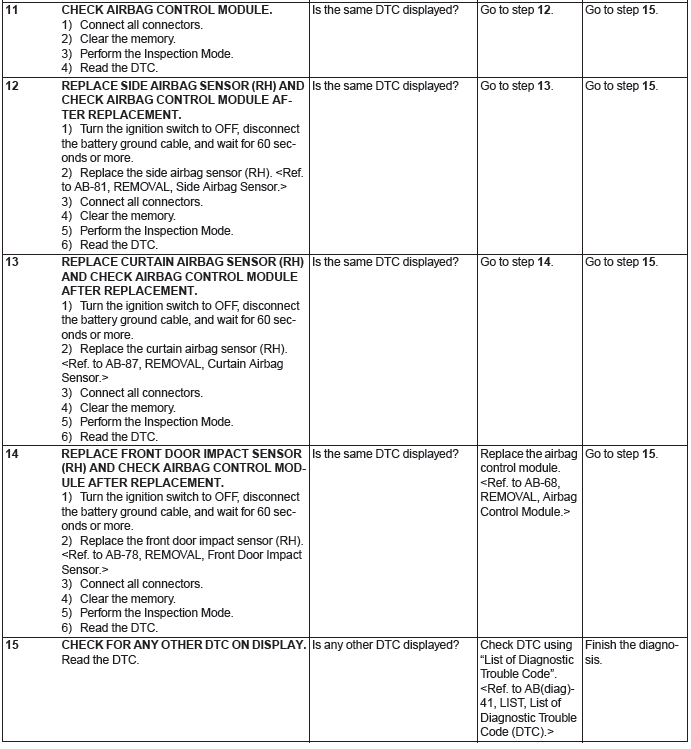

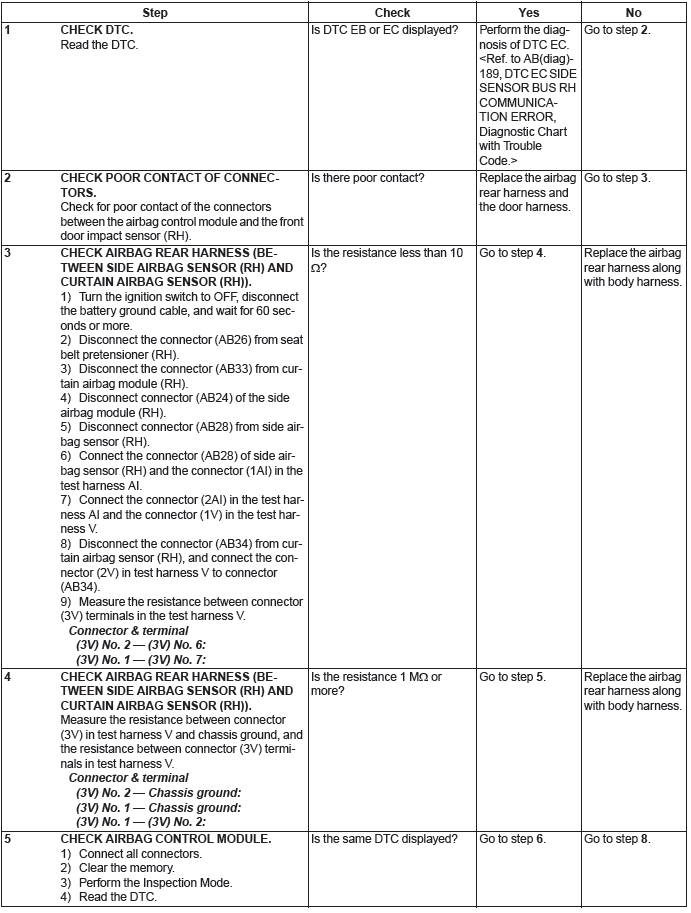

CB:DTC E9 SIDE SENSOR BUS RH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

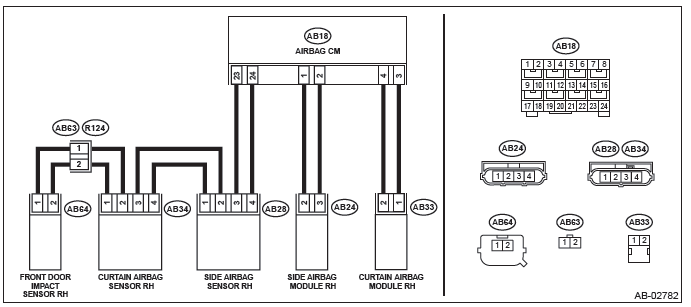

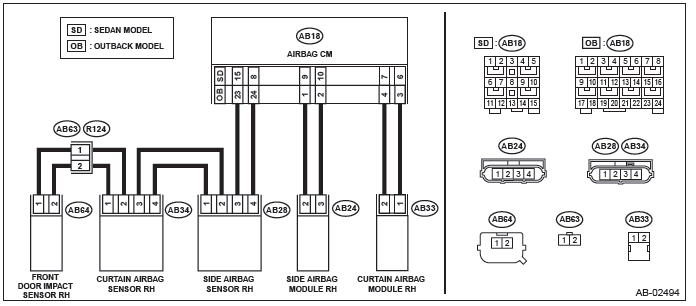

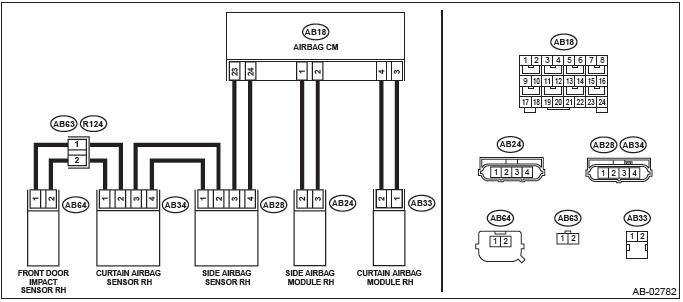

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

CC:DTC EA SIDE SENSOR BUS RH COMMUNICATION ERROR

NOTE: Refer to DTC E9 for details on DTC EA. <Ref. to AB(diag)-183, DTC E9 SIDE SENSOR BUS RH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

CD:DTC EB SIDE SENSOR BUS RH COMMUNICATION ERROR

NOTE: Refer to DTC EC for details on DTC EB. <Ref. to AB(diag)-189, DTC EC SIDE SENSOR BUS RH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

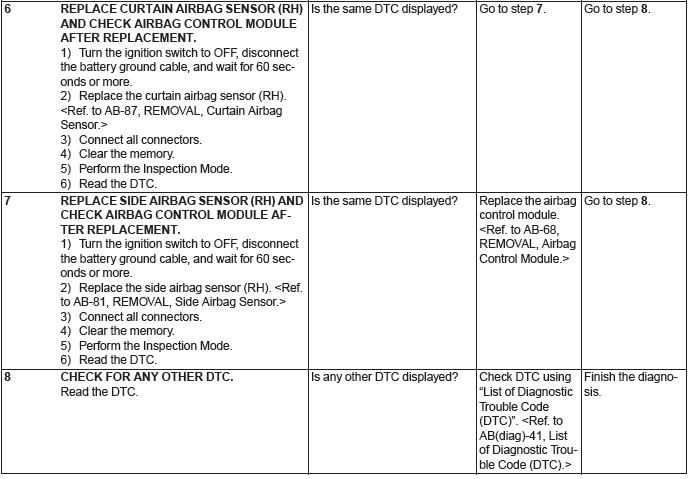

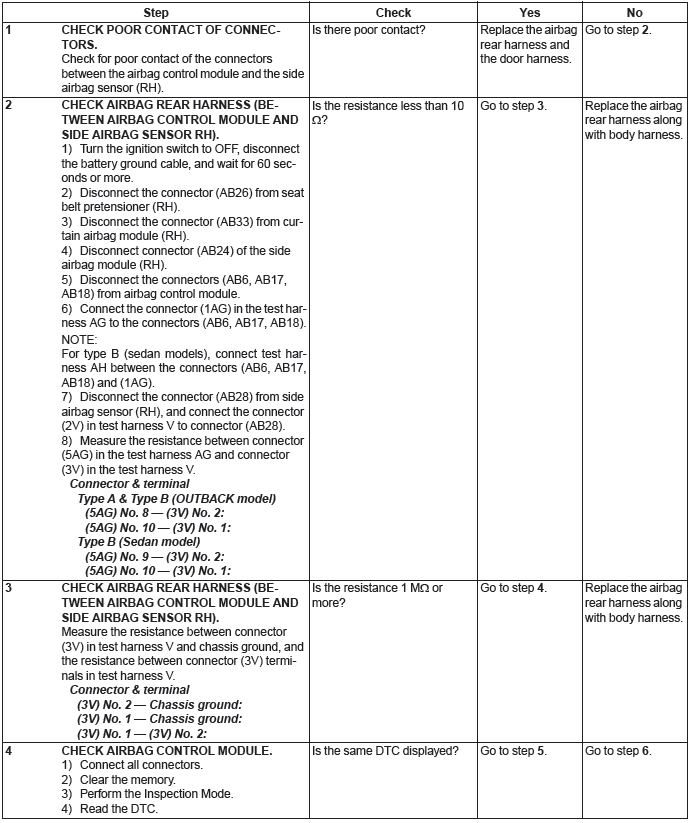

CE:DTC EC SIDE SENSOR BUS RH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

CF:DTC ED SIDE SENSOR BUS RH COMMUNICATION ERROR

NOTE: Refer to DTC EE for details on DTC ED. <Ref. to AB(diag)-192, DTC EE SIDE SENSOR BUS RH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

CG:DTC EE SIDE SENSOR BUS RH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

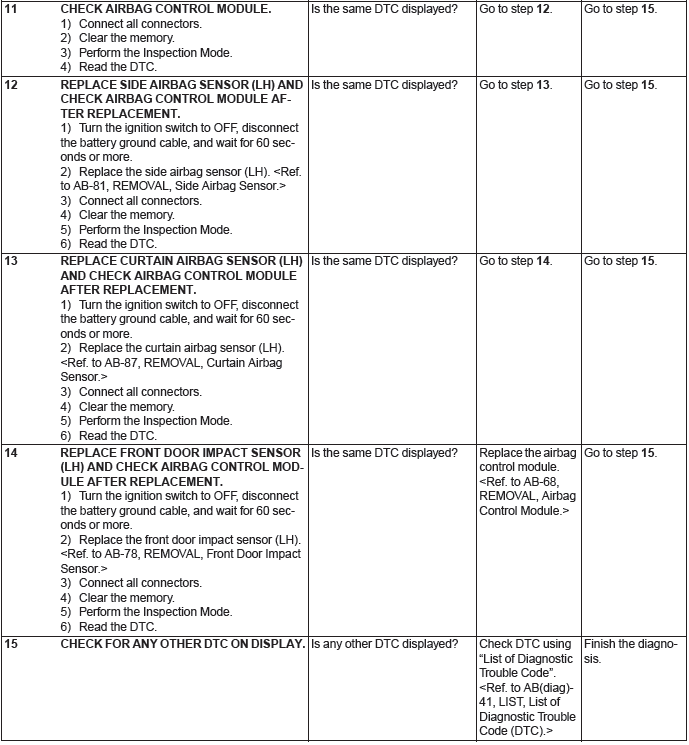

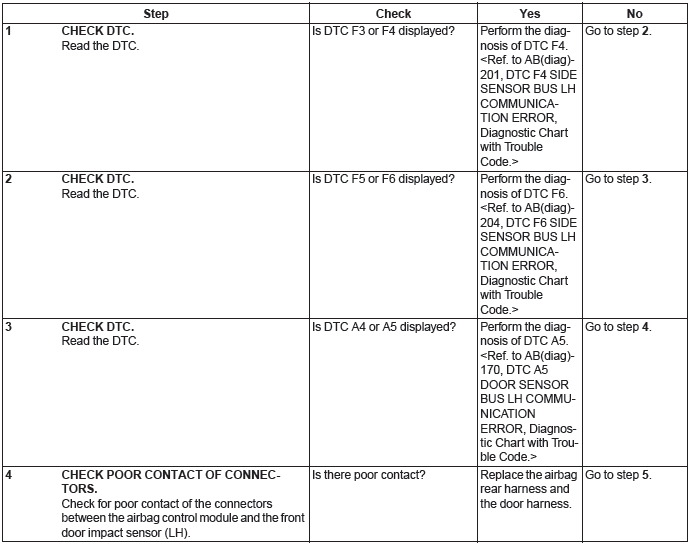

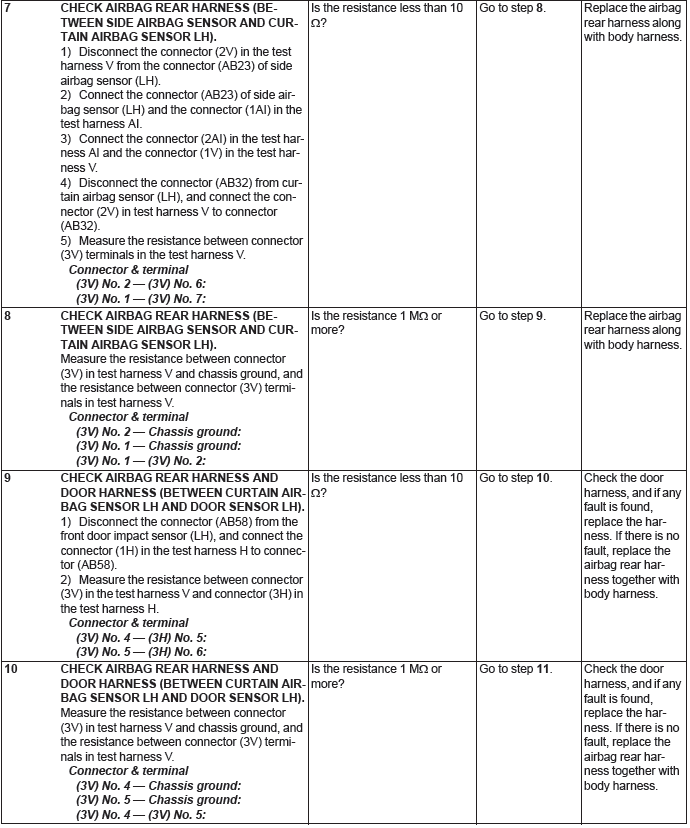

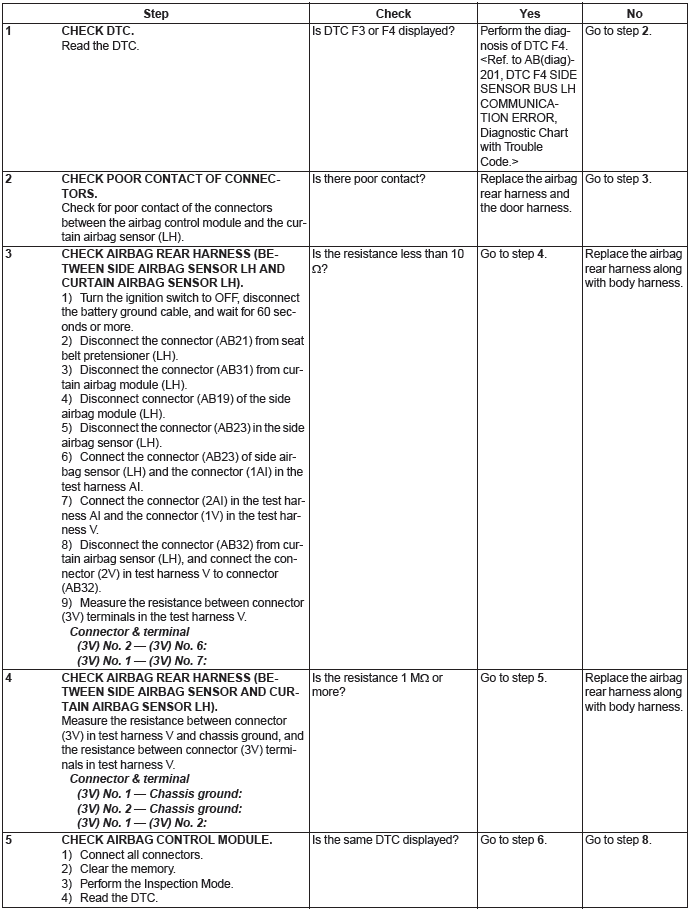

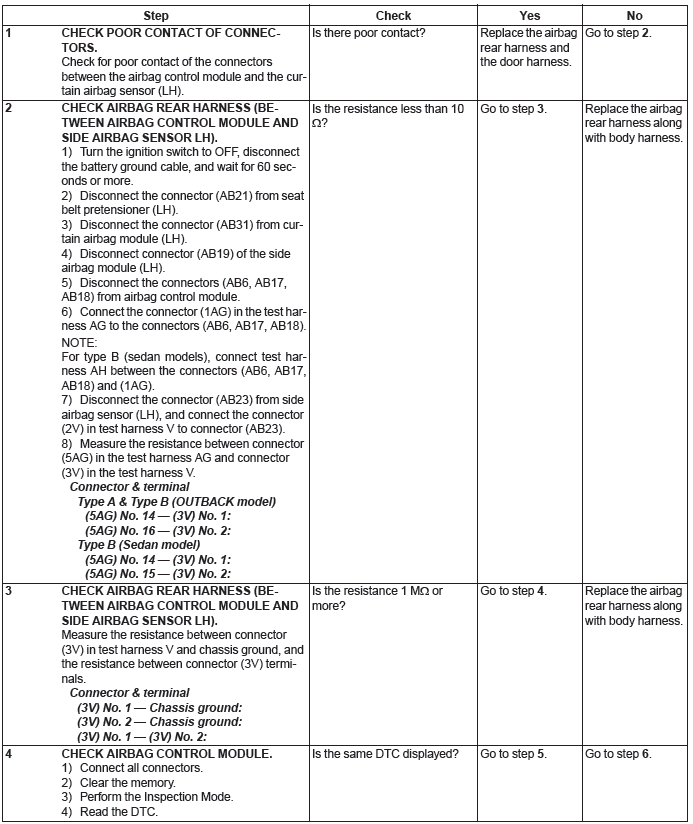

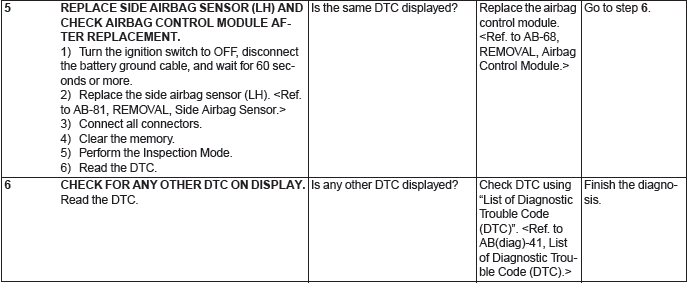

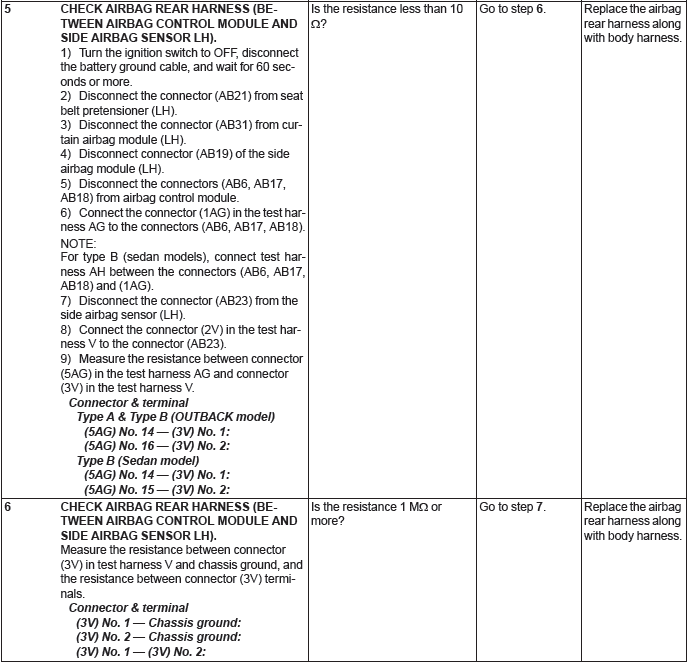

CH:DTC F1 SIDE SENSOR BUS LH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

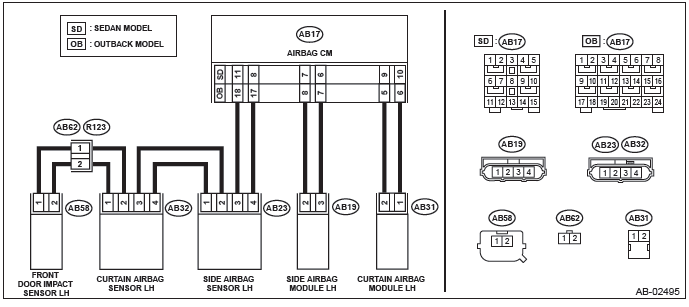

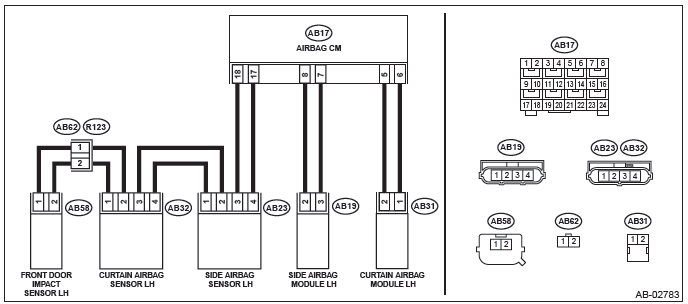

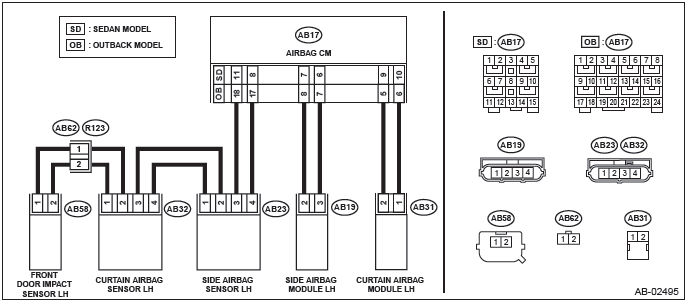

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

CI: DTC F2 SIDE SENSOR BUS LH COMMUNICATION ERROR

NOTE: Refer to DTC F1 for details on DTC F2. <Ref. to AB(diag)-195, DTC F1 SIDE SENSOR BUS LH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

CJ:DTC F3 SIDE SENSOR BUS LH COMMUNICATION ERROR

NOTE: Refer to DTC F4 for details on DTC F3. <Ref. to AB(diag)-201, DTC F4 SIDE SENSOR BUS LH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

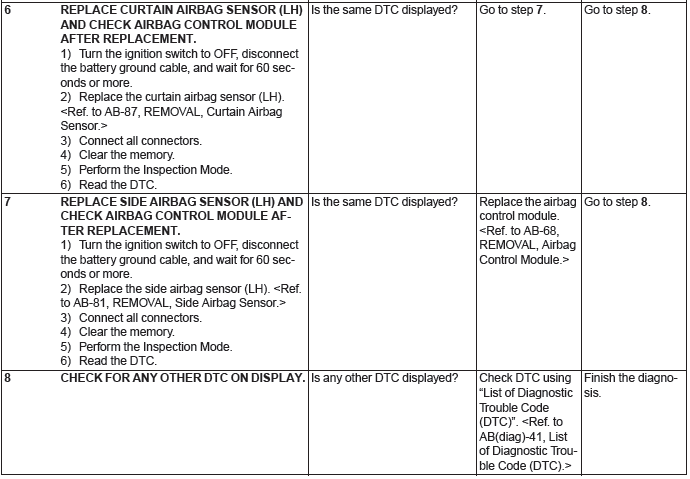

CK:DTC F4 SIDE SENSOR BUS LH COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

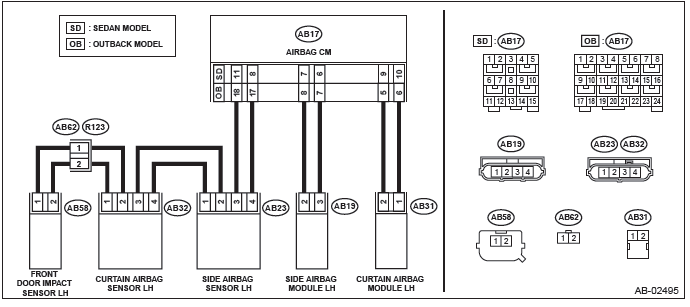

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

CL:DTC F5 SIDE SENSOR BUS LH COMMUNICATION ERROR

NOTE: Refer to DTC F6 for details on DTC F5. <Ref. to AB(diag)-204, DTC F6 SIDE SENSOR BUS LH COMMUNICATION ERROR, Diagnostic Chart with Trouble Code.>

CM:DTC F6 SIDE SENSOR BUS LH COMMUNICATION ERROR

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)
