Subaru Outback (BR): Airbag Connector, Diagnostic Trouble Code

Subaru Outback (BR) 2010-2015 Service Manual / Body / Airbag System (Diagnostics) / Airbag Connector, Diagnostic Trouble Code

A: PROCEDURE

For operation procedures, refer to "Airbag Connector" of Airbag System. <Ref. to AB-18, Airbag Connector.>

Airbag Control Module I/O Signal

A: ELECTRICAL SPECIFICATION

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

B: WIRING DIAGRAM

Refer to the WI section wiring diagram. <Ref. to WI-45, WIRING DIAGRAM, Airbag System.>

Subaru Select Monitor

A: OPERATION

For operation procedures, refer to the "PC application help for Subaru Select Monitor".

B: INSPECTION

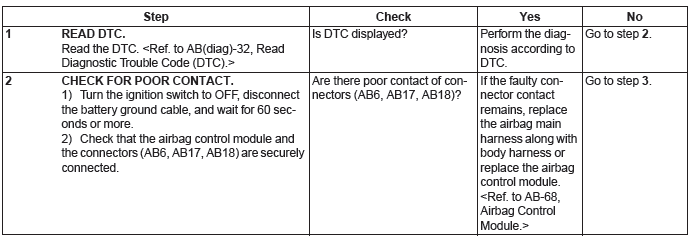

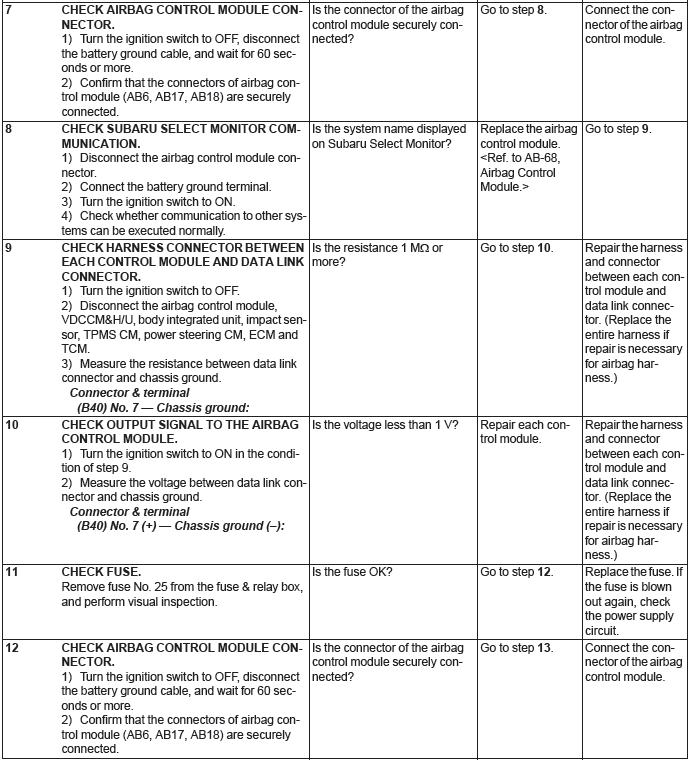

1. COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DTC DETECTING CONDITION:

Defective harness connector

TROUBLE SYMPTOM:

Communication is impossible between the airbag control module and the Subaru Select Monitor.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Read Diagnostic Trouble Code (DTC)

A: OPERATION

For operation procedures, refer to the "PC application help for Subaru Select Monitor".

NOTE: For details concerning DTCs, refer to List of Diagnostic Trouble Codes (DTC). <Ref. to AB(diag)-41, List of Diagnostic Trouble Code (DTC).>

Inspection Mode

A: PROCEDURE

Recreate the circumstance by referring to the conditions described in the checklist.

Clear Memory Mode

A: OPERATION

For operation procedures, refer to the "PC application help for Subaru Select Monitor".

NOTE: Clear the DTC stored in the airbag control module after repairing the airbag system.

Display of Status Information

A: OPERATION

Check the operating condition of each sensor in the event of malfunction in the seat belt buckle switch, or when the seat belt buckle switch has been replaced.

1) On "Main Menu" display, select {Each System Check}.

2) On "System Selection Menu" display, select {Airbag System}.

3) On "Airbag System" display, select {Status Data}.

The following table is for support data.

Subaru Outback. Airbag System (Diagnostics)

*1: Displayed when it is initial.
*2: Seat position sensor not supported
*3: Seat belt fastened
*4: Seat belt not fastened
*5: Displayed when data other than belt fastened or not fastened, such as breakdowns is input.
*6: Seat belt buckle switch not supported
*7: Passenger's airbag operating state
*8: Passenger's airbag non-operating state

NOTE: For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".

Airbag Warning Light Illumination Pattern

A: INSPECTION

Turn the ignition switch to ON, and confirm that the airbag warning light remains on for approx. 6 seconds then turns off afterwards.

Subaru Outback. Airbag System (Diagnostics)

  1. Airbag warning light
  2. Approx. 6 sec.
  3. Ignition switch ON

Airbag Warning Light Failure

A: AIRBAG WARNING LIGHT REMAINS ON

DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

B: AIRBAG WARNING LIGHT REMAINS OFF

DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

List of Diagnostic Trouble Code (DTC)

A: LIST

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)
