Subaru Outback: DTC 11, 12, 15, 16, 1A, 1B, 1D, 1E, 21, 22, 26, 27, 29, 2A, 2B, 2D, 33, 34, 37, 39, 3A, 3B

Subaru Outback (BR) 2010-2015 Service Manual / Body / Airbag System (Diagnostics) / Diagnostic Chart with Trouble Code / DTC 11, 12, 15, 16, 1A, 1B, 1D, 1E, 21, 22, 26, 27, 29, 2A, 2B, 2D, 33, 34, 37, 39, 3A, 3B

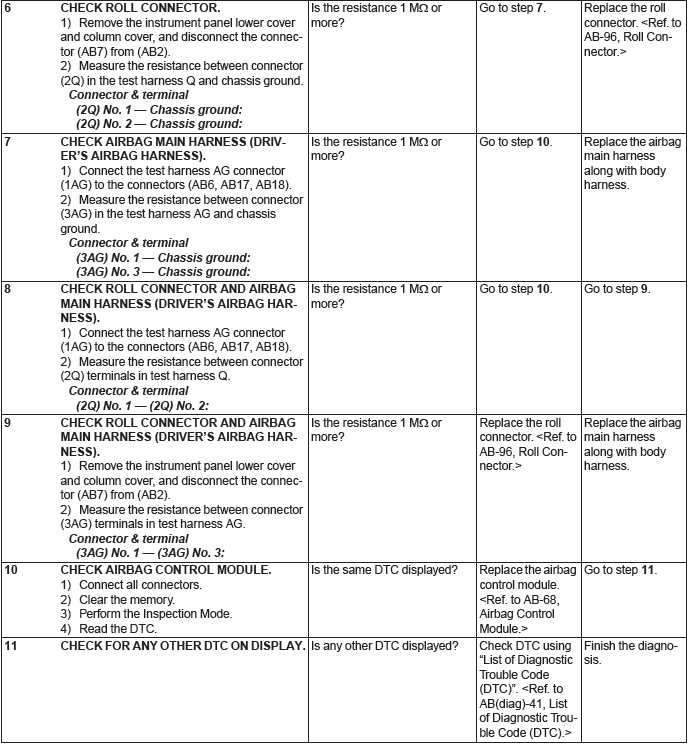

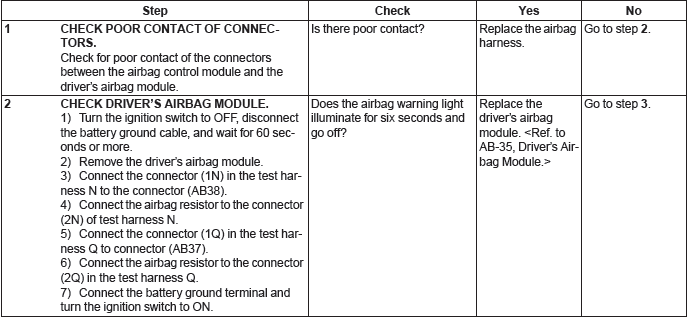

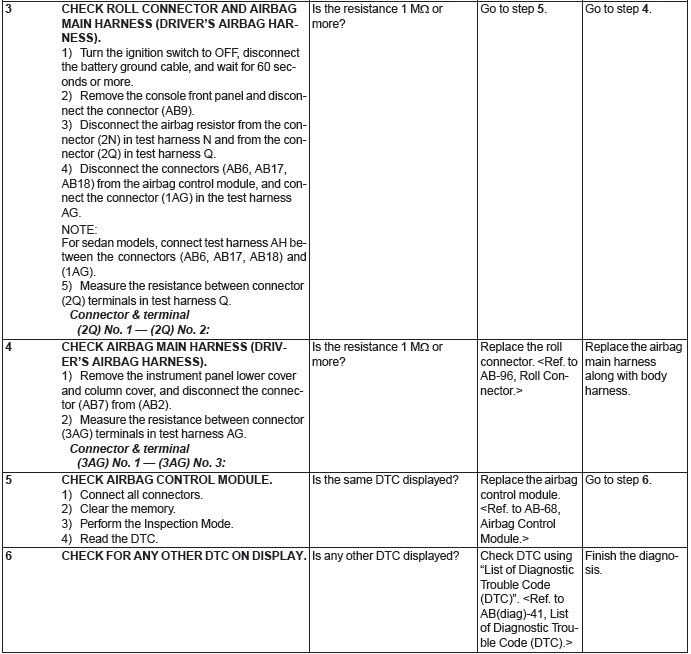

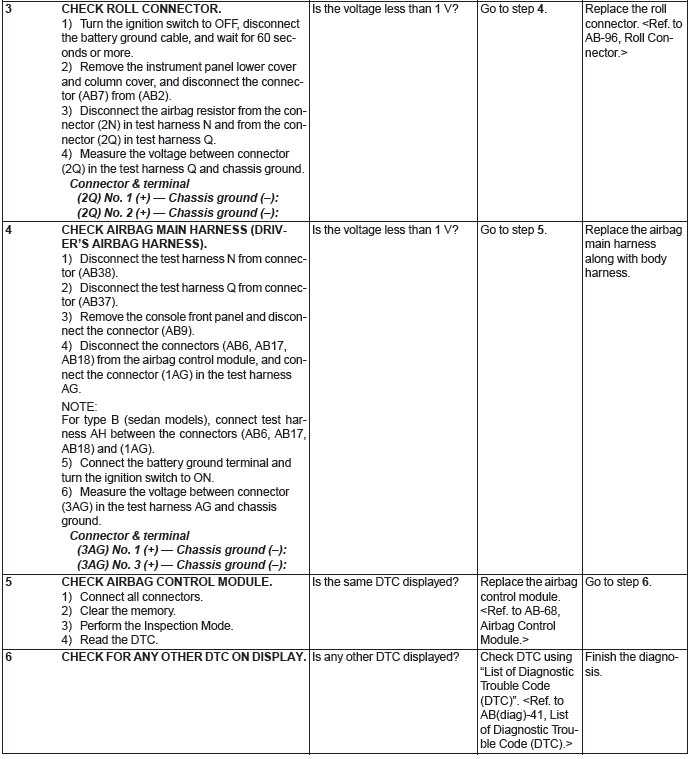

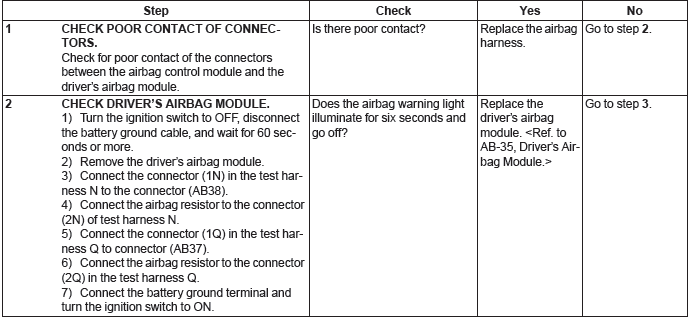

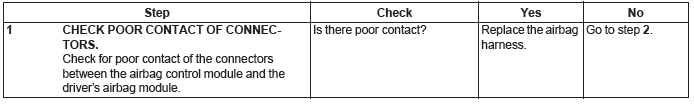

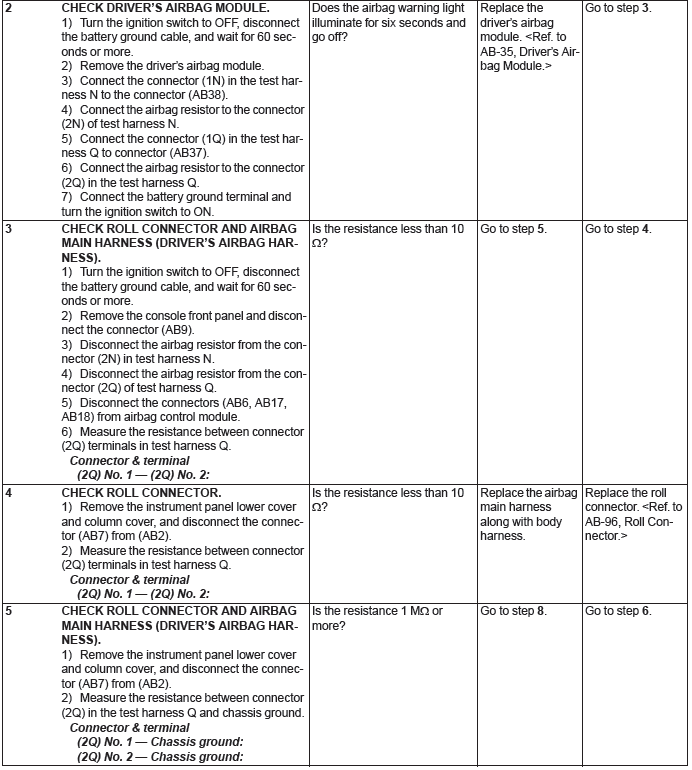

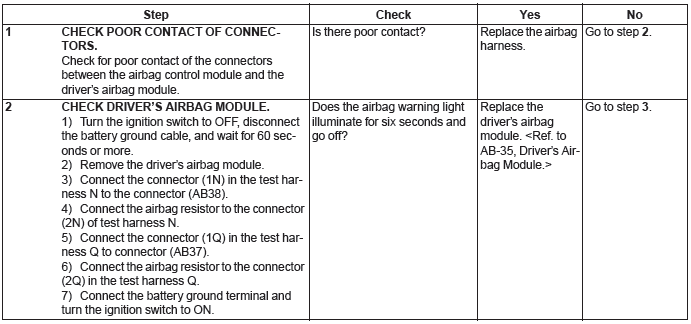

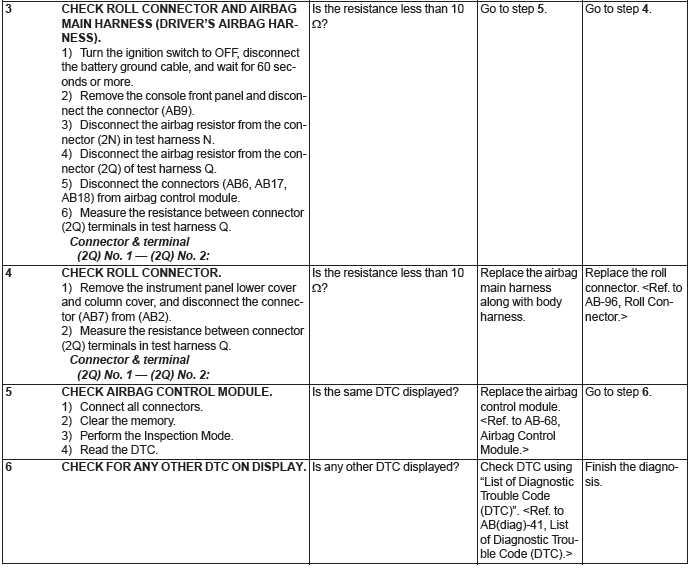

A: DTC 11 DRIVER'S AIRBAG FAILURE

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

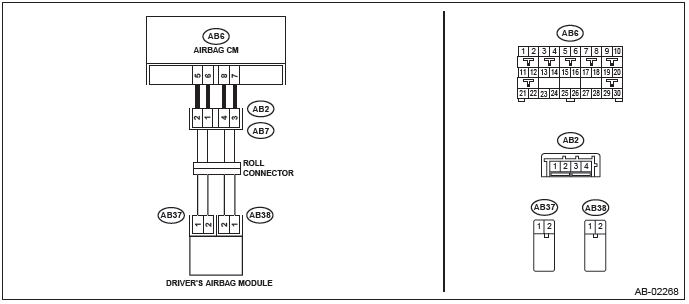

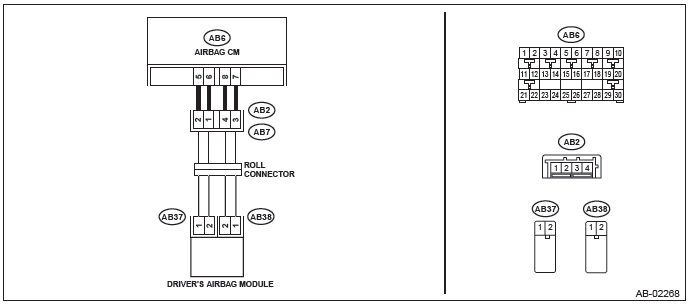

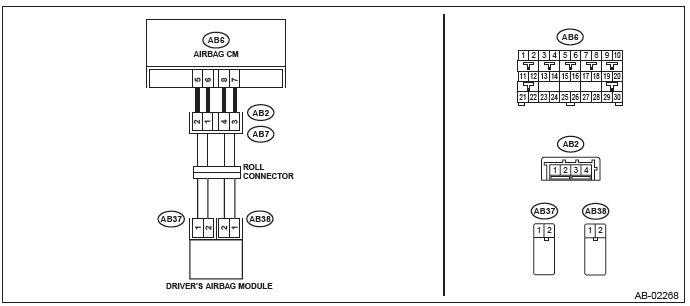

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

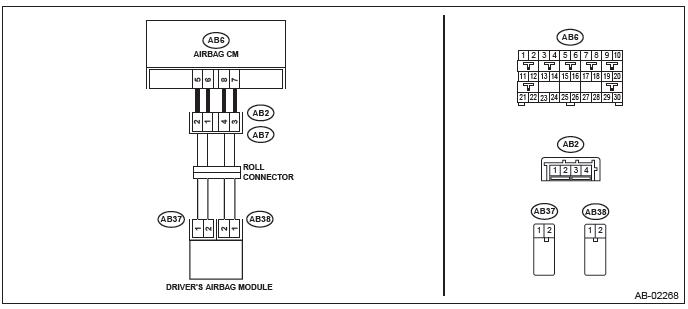

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

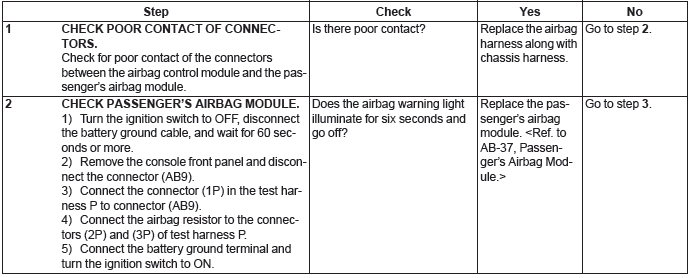

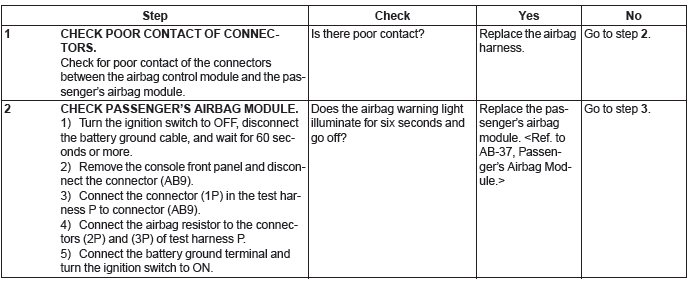

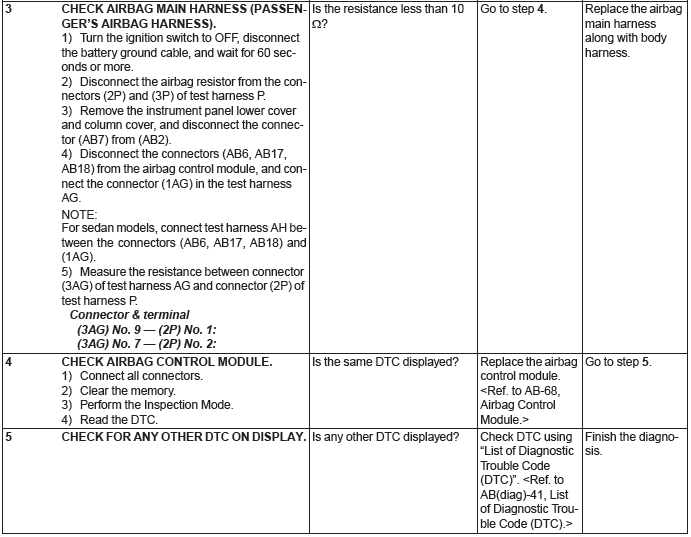

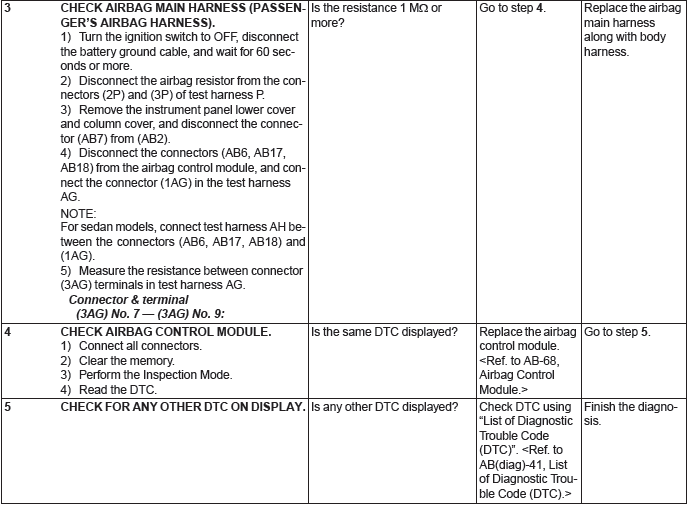

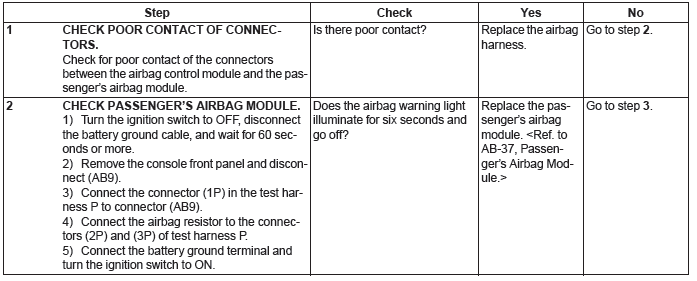

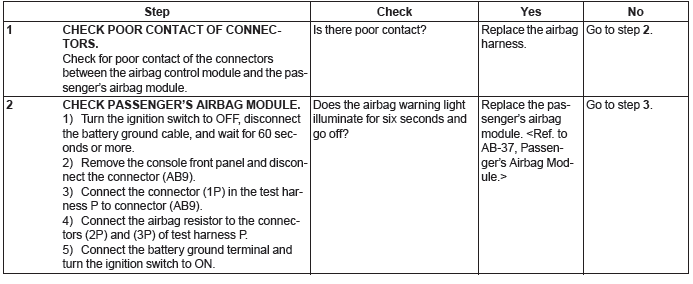

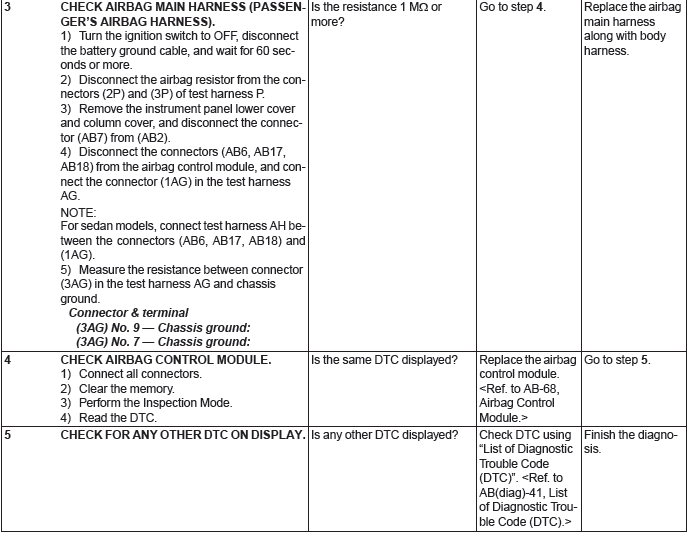

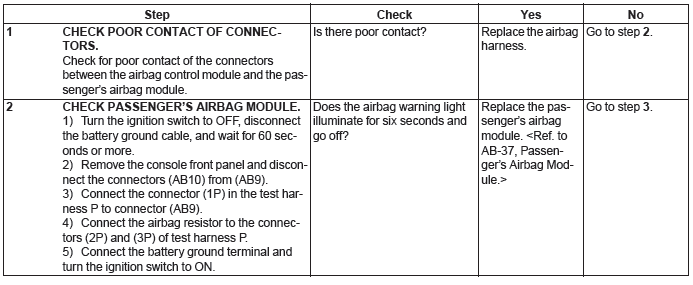

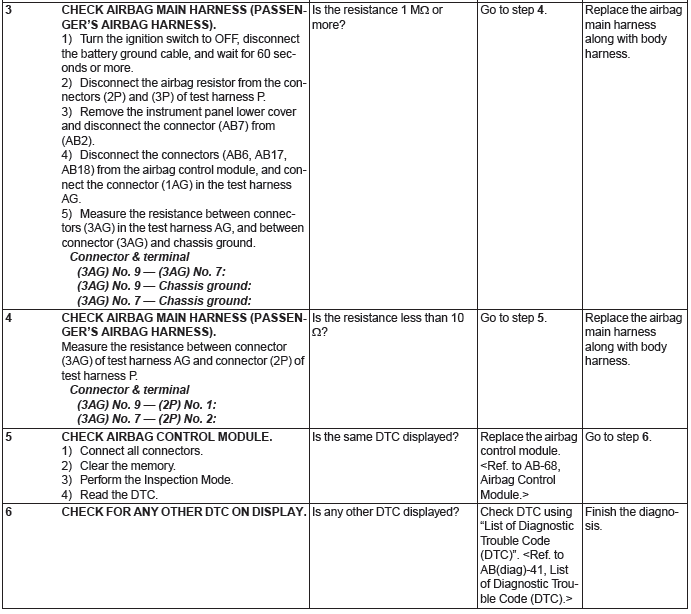

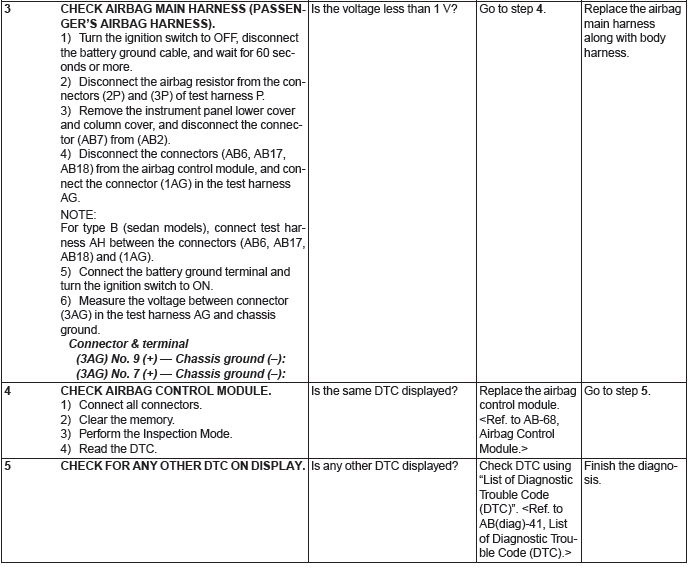

B: DTC 12 PASSENGER'S AIRBAG FAILURE

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

1. TYPE A

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

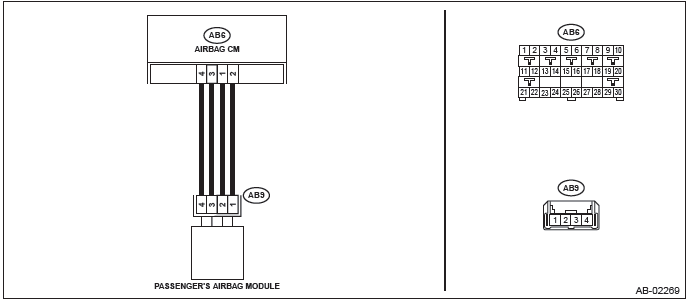

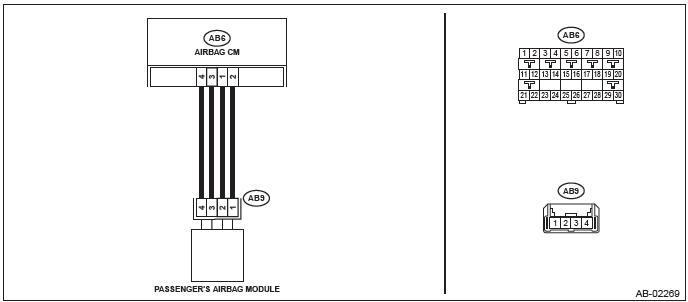

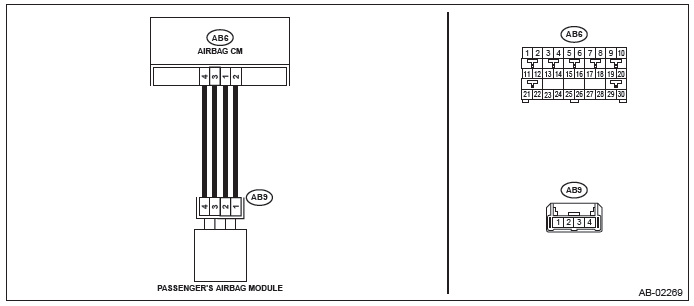

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

2. TYPE B

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

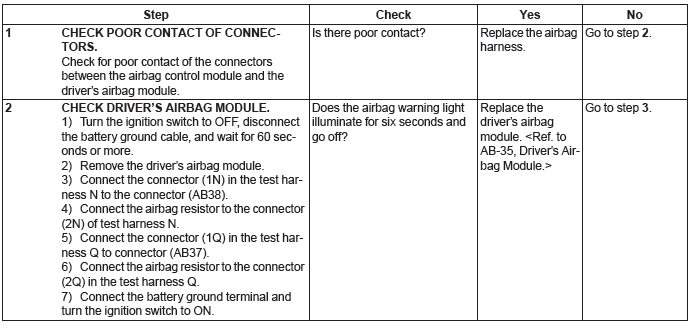

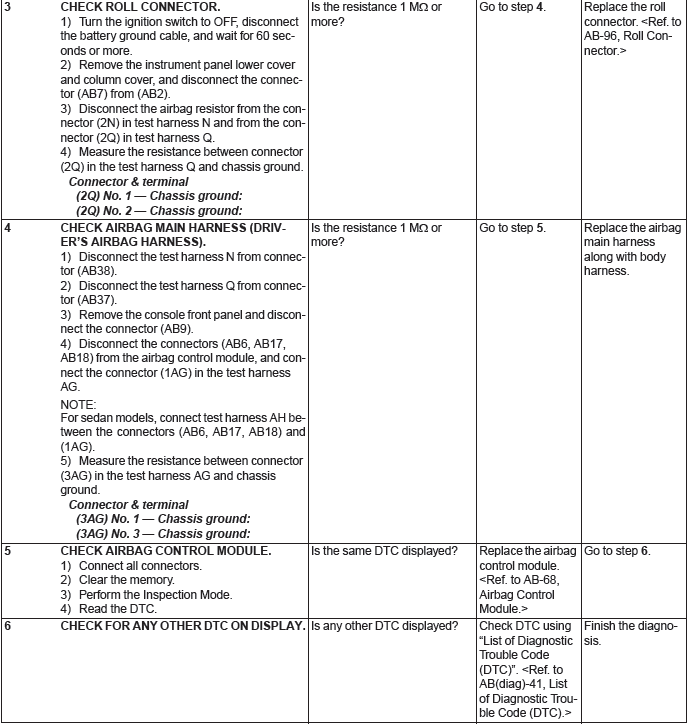

C: DTC 15 DRIVER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

D: DTC 16 PASSENGER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

E: DTC 1A DRIVER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

F: DTC 1B PASSENGER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

G: DTC 1D DRIVER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

H: DTC 1E PASSENGER'S AIRBAG FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

NOTE: Prior to starting work, prepare two AIRBAG RESISTORs (98299PA040).

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

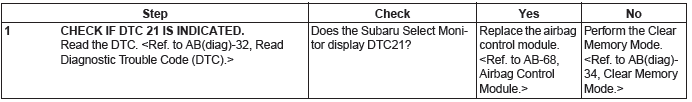

I: DTC 21 AIRBAG ECM FAILURE

DTC DETECTING CONDITION:

Airbag control module is faulty.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

Subaru Outback. Airbag System (Diagnostics)

J: DTC 22 FRONT AIRBAG FIRING OUTPUT

DTC DETECTING CONDITION:

This DTC is indicated when the front airbag module and the pretensioner are deployed.

Once this DTC is displayed, the memory cannot be cleared. Therefore replace the following parts.

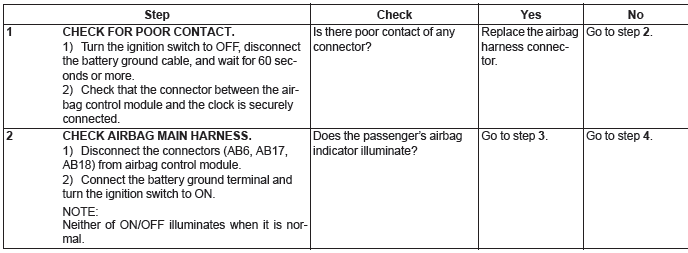

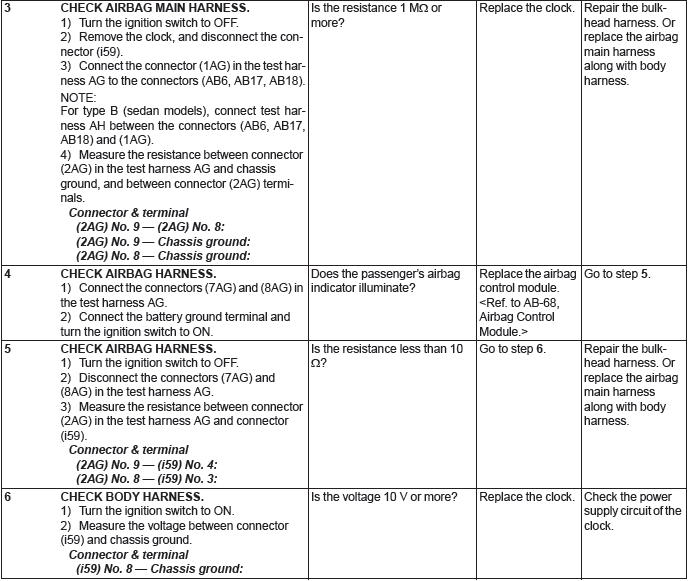

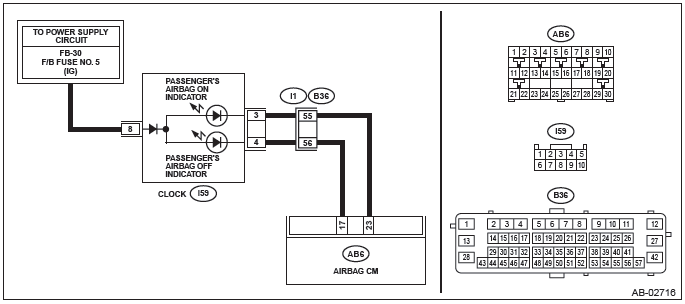

K: DTC 26 PASSENGER'S AIRBAG INDICATOR FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

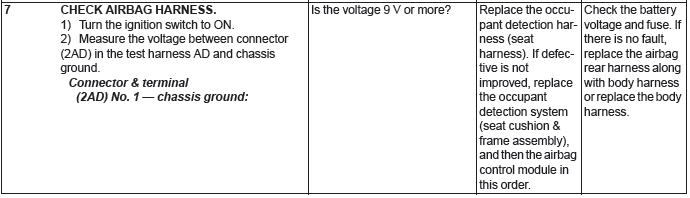

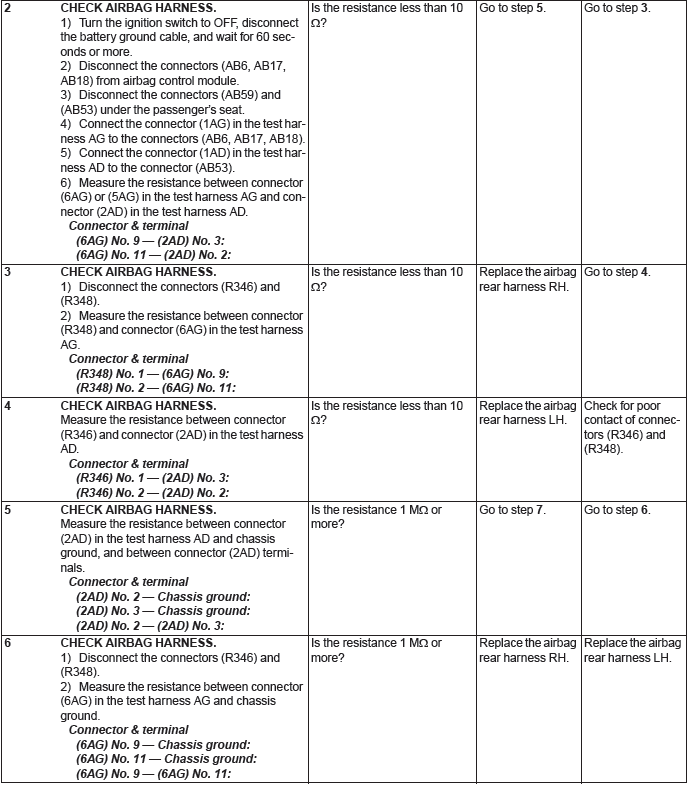

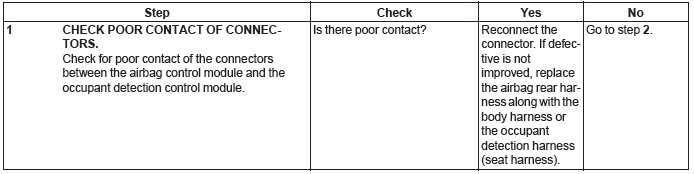

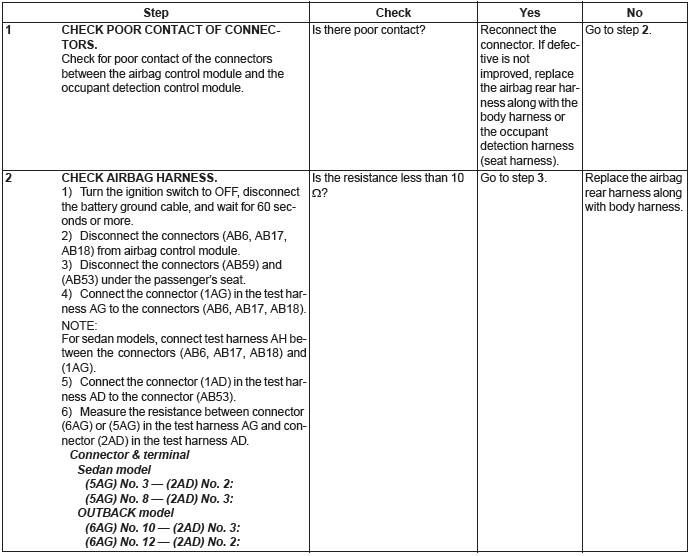

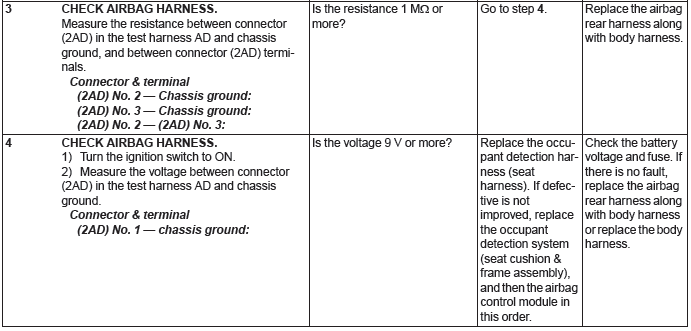

L: DTC 27 ODS COMMUNICATION ERROR

NOTE: Be sure to properly identify the Airbag system type prior to performing any diagnostics.

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

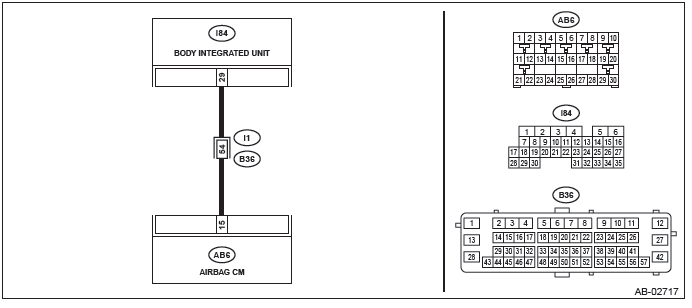

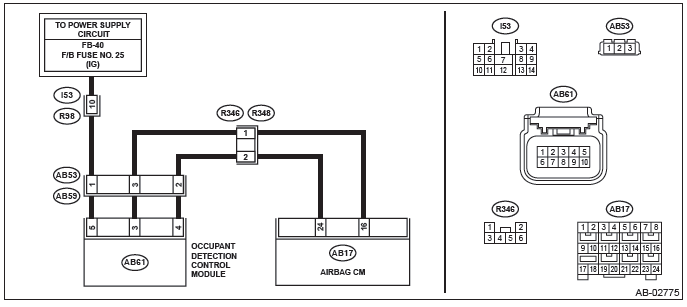

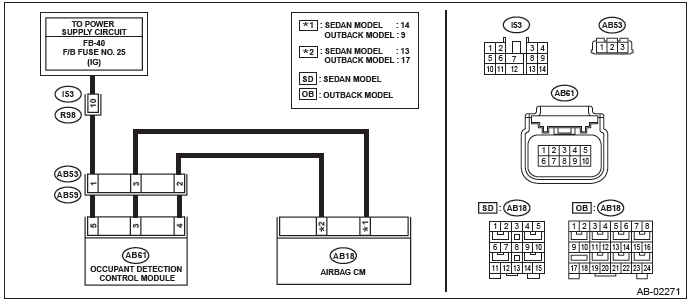

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

M: DTC 29 ODS FAILURE

NOTE: Refer to "Occupant Detection System" for details on DTC 29. <Ref. to OD(diag)-21, DTC 29 ODS FAILURE, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>

N: DTC 2A ODS CALIBRATION ERROR

NOTE: Refer to "Occupant Detection System" for details on DTC 2A. <Ref. to OD(diag)-22, DTC 2A ODS CALIBRATION ERROR, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>

O: DTC 2B ODS SYSTEM WRONG PARTS

NOTE: Refer to "Occupant Detection System" for details on DTC 2B. <Ref. to OD(diag)-22, DTC 2B ODS SYSTEM WRONG PARTS, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>

P: DTC 2D AIRBAG WARNING INDICATOR FAILURE

DTC DETECTING CONDITION:

NOTE: For the diagnostic procedure, refer to "Airbag Warning Light Failure". <Ref. to AB(diag)-37, Airbag Warning Light Failure.>

Q: DTC 33 FRONT SUB SENSOR RH FAILURE

DTC DETECTING CONDITION:

Front sub sensor (RH) is faulty.

If DTC 33 is displayed, the circuit within the front sub sensor (RH) is faulty.

Replace the front sub sensor (RH). <Ref. to AB-71, Front Sub Sensor.>

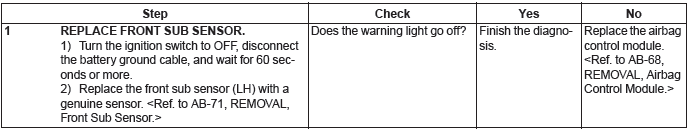

R: DTC 34 FRONT SUB SENSOR LH FAILURE

DTC DETECTING CONDITION:

Front sub sensor (LH) is faulty.

If DTC 34 is displayed, the circuit within the front sub sensor (LH) is faulty.

Replace the front sub sensor (LH). <Ref. to AB-71, Front Sub Sensor.>

S: DTC 37 BUCKLE SWITCH RH FAILURE

NOTE: Refer to "Occupant Detection System" for details on DTC 37. <Ref. to OD(diag)-23, DTC 37 BUCKLE SWITCH RH FAILURE, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>

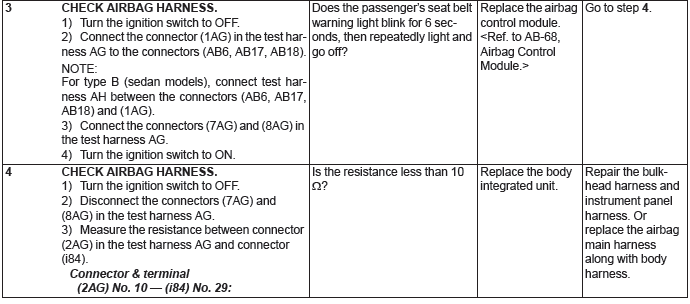

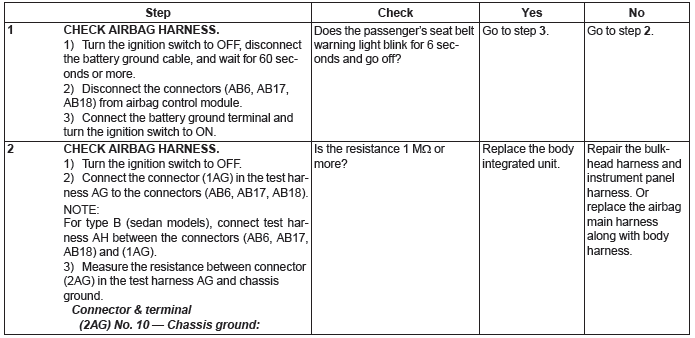

T: DTC 39 SEAT BELT WARNING FAILURE

DTC DETECTING CONDITION:

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". <Ref. to AB(diag)-5, CAUTION, General Description.>

WIRING DIAGRAM:

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

Subaru Outback. Airbag System (Diagnostics)

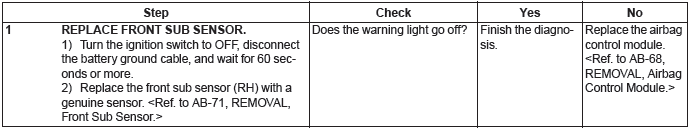

U: DTC 3A FRONT SUB SENSOR RH FALSE INSTALLATION

DTC DETECTING CONDITION:

Front sub sensor (RH) is misinstalled.

Subaru Outback. Airbag System (Diagnostics)

V: DTC 3B FRONT SUB SENSOR LH FALSE INSTALLATION

DTC DETECTING CONDITION:

Front sub sensor (LH) is misinstalled.

Subaru Outback. Airbag System (Diagnostics)
