Subaru Outback (BR): DTC P2229, P2610, U0073, U0101, U0122, U0140, U0402, U0416, U0422

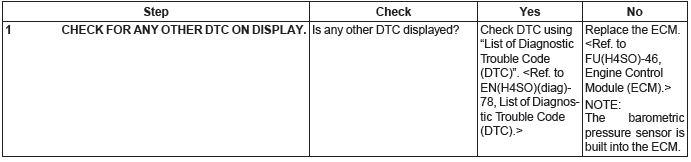

EA:DTC P2229 BAROMETRIC PRESSURE CIRCUIT HIGH
DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION <Ref. to GD(H4SO)-240, DTC P2229 BAROMETRIC PRESSURE CIRCUIT HIGH, Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO)(diag)-51, OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4SO)(diag)-40, PROCEDURE, Inspection Mode.>.

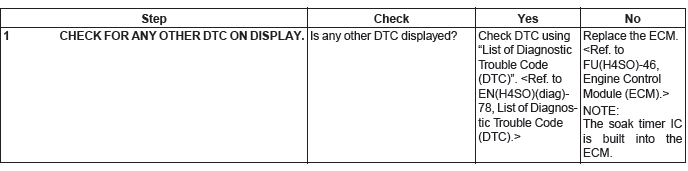

EB:DTC P2610 ECM/PCM INTERNAL ENGINE OFF TIMER PERFORMANCE
DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION <Ref. to GD(H4SO)-241, DTC P2610 ECM/PCM INTERNAL ENGINE OFF TIMER PERFORMANCE, Diagnostic Trouble Code (DTC) Detecting Criteria.>
CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO)(diag)-51, OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4SO)(diag)-40, PROCEDURE, Inspection Mode.>.
EC:DTC U0073 CAN FAILURE, BUS 'OFF' DETECTION
NOTE: For the diagnostic procedure, refer to LAN section. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
ED:DTC U0101 CAN (TCU) DATA NOT LOADED
NOTE: For the diagnostic procedure, refer to LAN section. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
EE:DTC U0122 CAN (VDC) DATA NOT LOADED
NOTE: For the diagnostic procedure, refer to LAN section. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
EF:DTC U0140 CAN (BCU) DATA NOT LOADED
NOTE: For the diagnostic procedure, refer to LAN section. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
EG:DTC U0402 CAN (TCU) DATA ABNORMAL
NOTE: For the diagnostic procedure, refer to LAN section. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
EH:DTC U0416 CAN (VDC) DATA ABNORMAL
NOTE: For the diagnostic procedure, refer to LAN section. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
EI: DTC U0422 CAN (BCU) DATA ABNORMAL
NOTE: For the diagnostic procedure, refer to LAN section. <Ref. to LAN(diag)-2, Basic Diagnostic Procedure.>
General Diagnostic Table
A: INSPECTION

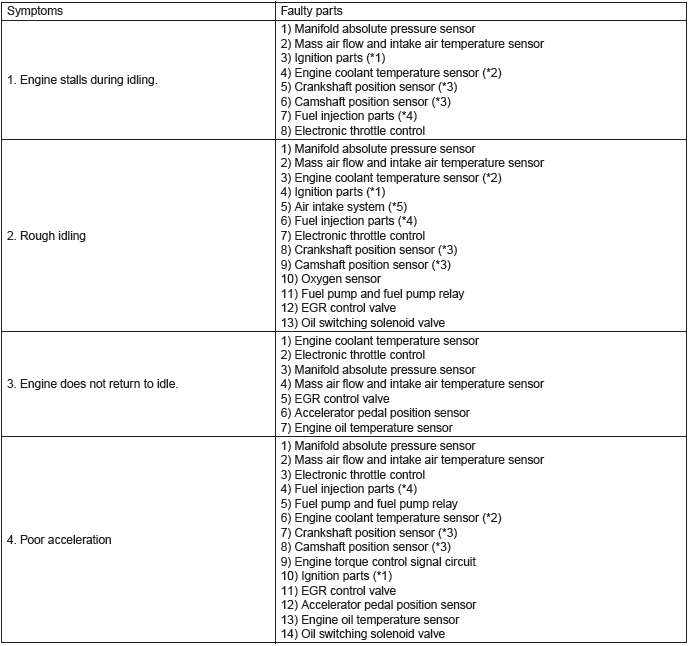

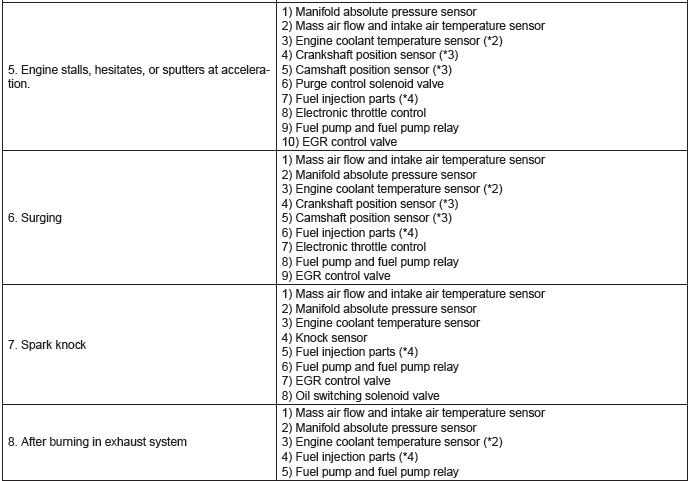

1. ENGINE
NOTE: Malfunction of parts other than those listed is also possible. <Ref. to ME(H4SO)-102, Engine Trouble in General.>
*1: Check ignition coil and spark plug.
*2: Indicate the symptom occurring only in cold temperatures.
*3: Ensure the secure installation.
*4: Check fuel injector, fuel pressure regulator and fuel filter.
*5: Inspect air leak in air intake system.
