Subaru Outback (BR): General Description of Fuel Injection System
A: SPECIFICATION
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_124.png)
B: COMPONENT

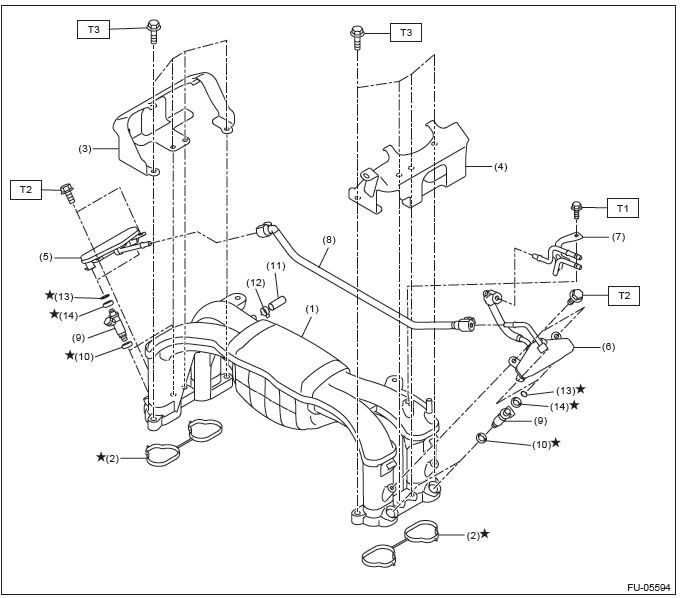

1. INTAKE MANIFOLD
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_125.png)
- Intake manifold
- Gasket
- Intake manifold protector RH
- Intake manifold protector LH
- Fuel gallery RH
- Fuel gallery LH
- Fuel pipe
- Fuel delivery pipe
- Injector
- Seal ring
- Cap
- Clip
- O-ring
- Rubber
Tightening torque: N*m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 19 (1.9, 14.0)
T3: 25 (2.5, 18.4)
2. AIR INTAKE SYSTEM
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_126.png)
- Throttle body
- Gasket
- Multi-function duct
- Manifold absolute pressure sensor
- O-ring
- Gasket
- PCV pipe
- PCV hose A
- PCV hose B
- Clip
- PCV hose C
- PCV hose D
- PCV valve
- Clip
- PCV hose E
- Clip
- Heater hose A
- Clip
- Heater hose B
- EGR valve
- Gasket
- Gasket
- EGR pipe adapter
- Evaporation hose A
- Purge control solenoid valve (Other than U5 model)
- Bracket
- Purge control solenoid valve (U5 model)
- Evaporation hose B
- Evaporation hose C
Tightening torque: N*m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 6.4 (0.7, 4.7)
T3: 8 (0.8, 5.9)
T4: 19 (1.9, 14.0)
3. CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_127.png)
- Crankshaft position sensor
- Knock sensor
- Camshaft position sensor
- Camshaft position sensor support
Tightening torque: N*m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 24 (2.4, 17.7)
4. FUEL TANK
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_128.png)
- Fuel tank
- Fuel tank band RH
- Fuel tank band LH
- Fuel delivery tube
- Tube clamp
- Fuel sub delivery tube
- Fuel pump assembly
- Fuel pump upper plate
- Fuel pump gasket
- Fuel sub level sensor upper plate cushion
- Fuel sub level sensor
- Fuel sub level sensor upper plate
- Fuel sub level sensor gasket
- Fuel sub level sensor protector
- Fuel sub level sensor filter
- Retainer
- Stopper
- Heat shield cover
- Fuel tank protector RH
- Fuel tank protector LH
- Clip
- Self-locking nut
- Cushion
- Cushion
- Cushion
- Cushion
Tightening torque: N*m (kgf-m, ft-lb)
T1: 4.4 (0.4, 3.2)
T2: 9 (0.9, 6.6)
T3: 18 (1.8, 13.3)
T4: 33 (3.4, 24.3)
5. FUEL LINE
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_129.png)
- Clip
- Fuel delivery hose
- Evaporation hose
- Connect check cover
- Hose clamp
- Hose clamp bracket
- Fuel pipe ASSY
- Purge hose A
- Purge pipe
- Purge hose B
- Connector
- Air vent hose A
- Circulate tube
- Air vent tube
- Circulate hose
- Canister tube ASSY
- Drain valve
- Canister
- Drain filter
- Canister protector
- Drain tube ASSY
- Clamp
- Fuel filler hose
- Clamp
- Pressure hose
- Fuel tank pressure sensor
- Clip
- Vacuum hose
- Bushing
- Fuel pipe front grommet
- Pipe clamp
- Pipe clamp
- Clip
- Pipe clamp
- Pipe clamp
- Fuel pipe rear grommet
- Pipe clamp
- Tube clamp
- Tube clamp
- Tube clamp
- Tube clamp
- Clip
Tightening torque: N*m (kgf-m, ft-lb)
T1: 2 (0.2, 1.5)
T2: 2.5 (0.3, 1.8)
T3: 7.35 (0.7, 5.4)
T5: 8 (0.8, 5.9)
6. FUEL FILLER PIPE
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_130.png)
- Fuel filler cap
- Fuel filler pipe protector
- Clip
- Neck holder A
- Neck holder B
- Fuel filler pipe
- Fuel filler pipe bracket A
- Fuel filler pipe bracket B
- Fuel filler pipe bracket C
- Clip
- Evaporation hose
- Grommet
- Evaporation pipe
- Evaporation pipe protector
- Grommet
Tightening torque: N*m (kgf-m, ft-lb)
T1: 1 (0.1, 0.7)
T2: 7.35 (0.7, 5.4)
T3: 7.5 (0.8, 5.5)
7. FUEL PUMP
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_131.png)
- Fuel filter assembly
- Pump module spring
- Fuel pump harness
- Gasket spacer
- Fuel pump
- Support rubber cushion
- Fuel pump holder
- Fuel chamber ASSY
- Fuel level sensor
- Fuel temperature sensor
C: CAUTION
D: PREPARATION TOOL
1. SPECIAL TOOL
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_132.png)
2. GENERAL TOOL
![Subaru Outback. Fuel Injection (Fuel Systems)](images/books/1057/subaru_outback_general_description_133.png)
