Subaru Outback: Rear Hub Unit Bearing

A: REMOVAL

1) Lift up the vehicle, and then remove the rear wheels.

2) Remove the axle nut.

CAUTION: Do not loosen the axle nut while the rear axle is loaded. Doing so may damage the hub bearing.

  1. Lift the crimped section of axle nut.
  2. Remove the axle nut using a socket wrench while depressing the brake pedal.

Subaru Outback. Drive Shaft System

3) Remove the rear disc brake caliper from the rear axle housing.

  1. Remove the bolt from the brake hose bracket.
  2. Remove the mounting bolts, and then remove the rear disc brake caliper.

Subaru Outback. Drive Shaft System

  1. Prepare wiring harnesses etc. to be discarded, and suspend the rear disc brake caliper from the shock absorber with the harnesses.

Subaru Outback. Drive Shaft System

4) Remove the rear disc rotor.

NOTE: If it is difficult to remove the disc rotor, perform the following two methods in order.

1. Insert the flat tip screwdriver (b) into the brake adjustment hole (A), and rotate the adjusting screw (a) until the brake shoe moves far enough to remove the disc rotor (c).

Subaru Outback. Drive Shaft System

2. When the disc rotor is difficult to be removed from the rear hub unit bearing, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.

Subaru Outback. Drive Shaft System

5) Remove the rear hub unit bearing.

CAUTION:

Subaru Outback. Drive Shaft System

  1. Magnetic encoder
  2. Rear hub unit bearing

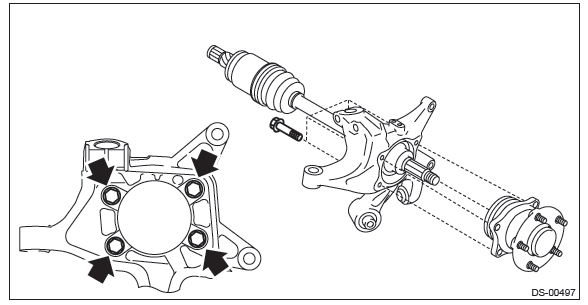

  1. Remove the bolt from the rear axle housing.

Subaru Outback. Drive Shaft System

  1. Remove the rear hub unit bearing.

Subaru Outback. Drive Shaft System

NOTE: If it is hard to remove, use the ST.

PREPARATION TOOL:
ST1: AXLE SHAFT PULLER (926470000)
ST2: AXLE SHAFT PULLER PLATE (28099PA110)

Subaru Outback. Drive Shaft System

B: INSTALLATION

1) Aligning with the mounting hole of the rear brake back plate, temporarily tighten the rear hub unit bearing to the rear axle housing.

CAUTION:

Subaru Outback. Drive Shaft System

  1. Magnetic encoder
  2. Rear hub unit bearing

2) Tighten the rear hub unit bearing.

Subaru Outback. Drive Shaft System

Tightening torque: 65 N*m (6.63 kgf-m, 47.9 ft-lb)

3) Tighten the new axle nut temporarily.

CAUTION: Use new axle nuts.

4) Install the rear disc rotor.

5) Install the disc brake.

Tightening torque: 66 N*m (6.73 kgf-m, 48.7 ft-lb)

6) While pressing the brake pedal, tighten the new axle nuts to the specified torque.

CAUTION: Do not load the rear axle before tightening the axle nut. Doing so may damage the hub bearing.

Tightening torque: 240 N*m (24.47 kgf-m, 177 ft-lb)

7) Inspect the lean of axis direction using a dial gauge. Replace the bearing if the load range exceeds the limitation.

Subaru Outback. Drive Shaft System

Service limit: Maximum: 0.05 mm (0.0020 in)

8) After tightening the axle nut, lock it securely.

Subaru Outback. Drive Shaft System

9) Install the rear wheels.

Tightening torque: 120 N*m (12.24 kgf-m, 88.5 ft-lb)

10) Moving the rear tire up and down by hand, check there is no backlash in bearing, and check the wheel rotates smoothly.

CAUTION: If there is any fault in the bearing, replace hub unit bearing.

Subaru Outback. Drive Shaft System

C: DISASSEMBLY

Using the ST or a hydraulic press, push out the hub bolt (b) from the rear hub unit bearing (a).

CAUTION:

PREPARATION TOOL: ST: HUB STAND (28399AG000)

Subaru Outback. Drive Shaft System

NOTE: Since the hub unit bearing can not be disassembled, only hub bolts can be removed.

D: ASSEMBLY

1) Install the hub unit bearing to the ST securely.

PREPARATION TOOL: ST: HUB STAND (927080000)

Subaru Outback. Drive Shaft System

  1. Rear hub unit bearing

2) Using a press, press the new hub bolts (b) until their seating surfaces contact the hub unit bearing (a).

Subaru Outback. Drive Shaft System

NOTE: Use the 12 mm (0.47 in) dia. holes in the HUB STAND to prevent bolts from tilting.

E: INSPECTION

1) Moving the rear tire up and down by hand, check there is no backlash in bearing, and check the wheel rotates smoothly.

CAUTION: If there is any fault in the bearing, replace hub unit bearing.

Subaru Outback. Drive Shaft System

2) Inspect the lean of axis direction using a dial gauge. Replace the bearing if the load range exceeds the limitation.

Service limit: Maximum: 0.05 mm (0.0020 in)

Subaru Outback. Drive Shaft System
